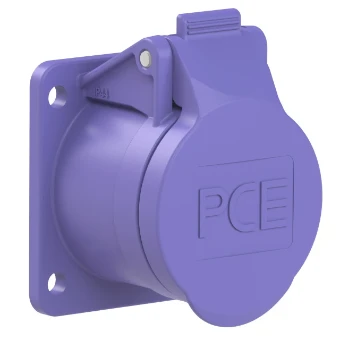

CEE-Anbausteckdose gerade 54x60mm 16A 2p 24VAC 50/60Hz IP44/IP54 TWIST
Add to selection
General information
Ordercode YESSS
7551-3606
Product code
362f9v
EAN code
9003399308635
Product group
Panel-mounted CEE socket outlet (IEC 60309)
Brand
PCE
Type
362f9v
CEE-Anbausteckdose gerade 54x60mm 16A 2p 24VAC 50/60Hz IP44/IP54 TWIST
CEE-Anbausteckdose gerade 54x60mm 16A 2p 24VAC 50/60Hz IP44/IP54 TWIST
STOCK
IN STOCK
0
piece
Product description
CEE-Anbausteckdose gerade 54x60mm 16A 2p 24VAC 50/60Hz IP44/IP54 TWIST; Gehäusematerial: PA6; Nennstrom: 16A; Polzahl: 2 (2P); Nennspannung/Frequenz: 24V~ / 50+60Hz; Kontakte: Messing vernickelt; Anschlusstechnik: Schraubklemmen; Abmessungen (Flansch/Bohrung): 54x60 mm / 44x44 mm; Schutzart: IP44/IP54
Product specifications
Number of poles
2
IEC-amperage
16 A
Identification colour
Purple
Voltage according to EN 60309-2
20-25 V (50+60 Hz) violet
Degree of protection (IP)
IP54
Connection system
Screwed terminal
Insert direction
Straight
Material
Plastic
Flange size vertical
60 mm
Drill hole distance vertical
44 mm
Flange size horizontal
54 mm
Drill hole distance horizontal
44 mm
Contact material
CuZn
Surface coating contacts
Nickel-plated
