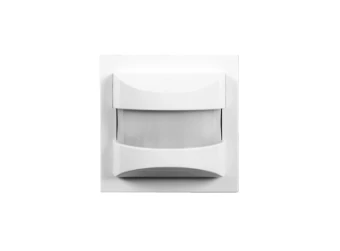

Sensor element for movement sensor/presence detector Panasonic Plus 55
Add to selection
General information
Ordercode YESSS
7595-7467
Product code
WDTR05545WH-EU1
EAN code
8682802407762
Product group
Sensor element for movement sensor/presence detector
Brand
Panasonic
Serie
Plus 55
Type
WDTR05545WH-EU1
Bewegungsmeldersensor Abdeckung 180 Grad reinweiß Plus 55
Bewegungsmeldersensor Abdeckung 180 Grad reinweiß Plus 55
Product description
Bewegungsmelder-Abdeckung für das Schalterprogramm Plus 55, Farbe reinweiß, mit Schalter für EIN /AUS/Automatik, Abschaltverzögerung 10 s bis 20 min, einstellbarer Helligkeitsgrenzwert 25 bis 500 Lux, Erfassungsbereich 8 m, Erfassungswinkel 180° horizontal, für Schalterprogr. 55 x 55 mm, passendes Zubehör: Bewegungsmelder 3-Leiter-Einsatz Artikel-Nr. WDTR 05585WH-EU1
Product specifications
Mounting method
Flush-mounted
Constant light control
No
Creep-under protection
Yes
Mounting height
1.1 m
Networkable
No
Suitable for wireless transmission
No
Max. reach sideways
8 m
Max. reach frontally
8 m
Diameter reach on floor
8 m
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Animal zone
No
Staircase light controller
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Suitable for degree of protection (IP)
IP20
Min. switch-on time
10 s
Max. duty cycle
20 min
Switch-off delay self-learning
No
Detection angle horizontal
180 - 180 °
Colour
White
RAL-number (similar)
9010
With orientation lighting
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Product information
