General information

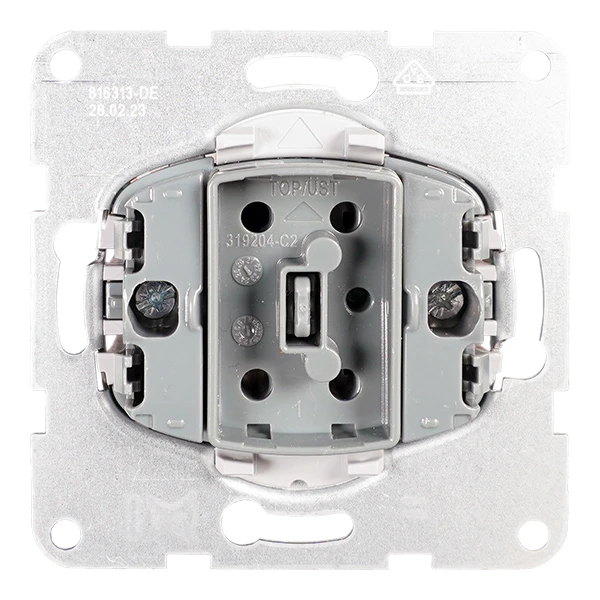

Taster-Schließer Einsatz Plus 55
Taster-Schließer Einsatz Plus 55
Ordercode YESSS
7596-8441
Product code
WDTM01169NC-EU1
EAN code
8682803135251
Product group
Push button
Brand
Panasonic
Serie
Plus 55
Type
WDTM01169NC-EU1
Product description
Wipptaster Einsatz in Projektverpackung, 1-polig Schließer mit Steckanschluss, Einsatz für Schalterprogramme 55 x 55 mm, Nennspannung 250 V~, Nennstrom 10A
Product specifications
Assembly arrangement
Basic element
Model
Single push button
Operating method
Push button/touch control button
Number of poles
1
Suitable for degree of protection (IP)
IP20
Number of rockers
1
Number of modules (module system)
0
With lighting
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
Anti-bacterial treatment
No
Label space/information surface
No
Transparent
No
Nominal voltage
250 V
Imprint
None
Rated current
10 A
Device width
74 mm
Device height
74 mm
Device depth
38 mm
Min. depth of built-in installation box
46 mm
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Connection type
Push-in clamp
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating principle
Electromechanical
