Gitterrinne GRM 55x300x3000 Stahl galvanisch verzinkt
- 0141-2275
- |
- 6001448
15 m
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

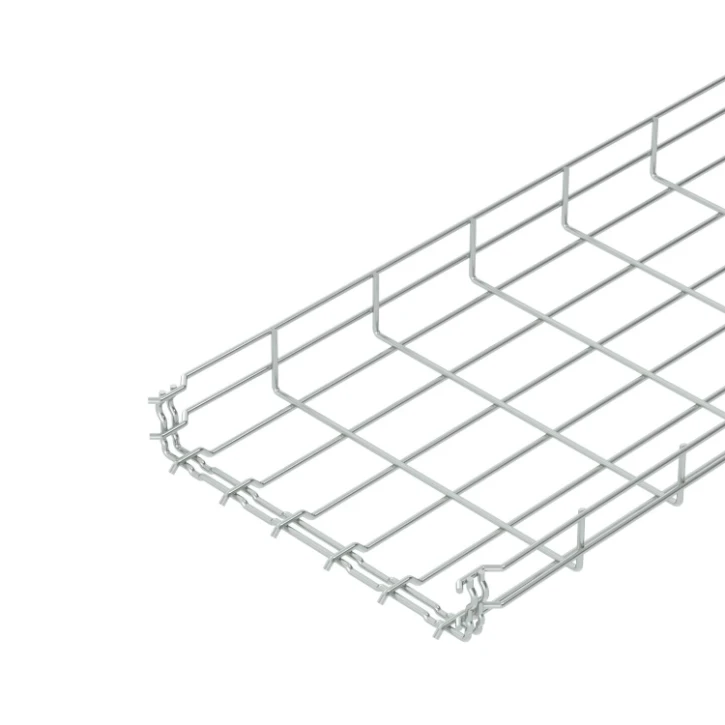

Gitterrinne GRM 55x300x3000 Stahl galvanisch verzinkt
Gitterrinne GRM 55x300x3000 Stahl galvanisch verzinkt
Ordercode YESSS
0141-2275
Product code
6001448
EAN code
4012196905287
Product group
Mesh cable tray
Brand
Obo
Serie
GRM-Serie
Type
GRM 55 300 G
Product description
Gitterrinne mit angeformtem Verbinder Seitenhöhe 55 mm.
Product specifications
Height
55 mm
Width
300 mm
Length
3000 mm
Model
Integrated connector
Material
Steel
Profile shape
U-shape
Usable cross section
12900 mm²
Integrated partition
None
Suitable for circuit integrity
Yes
Surface protection
Galvanic/electrolytic zinc plated
Colour
Zinc
Load test type according to IEC 61537
Type II
Weight
1.92 kg/m
Diameter longitudinal wire
4.8 mm
Diameter transverse wire
4.8 mm
Possible support spacing
1 - 2.5 m
Safe working load according to IEC 61537 with support spacing 1.0 m
700 Nm
Safe working load according to IEC 61537 with support spacing 1.5 m
500 Nm
Safe working load according to IEC 61537 with support spacing 2.0 m
250 Nm
Safe working load according to IEC 61537 with support spacing 2.5 m
200 Nm
