General information

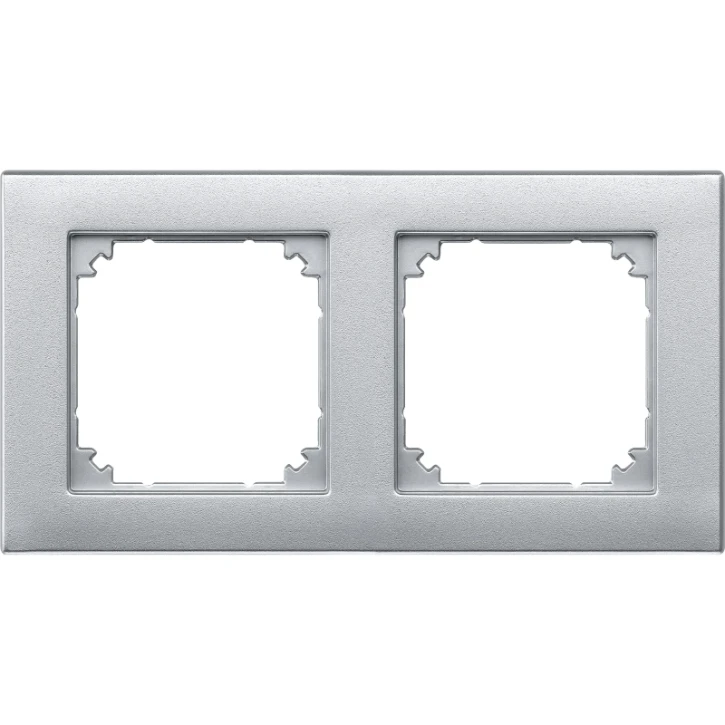

M-PLAN II-Rahmen, 2fach, bündiger Einbau, aluminium
M-PLAN II-Rahmen, 2fach, bündiger Einbau, aluminium
Ordercode YESSS
0015-5893
Product code
488260
EAN code
4011281898855
Product group
Cover frame for domestic switching devices
Brand
Merten
Serie
Merten System M
Type
488260
Product description
Für bündigen Einbau in die Wand. Für Senkrecht- und Waagerechtmontage. Zu komplettieren mit Einputzadapter für M-PLAN II-Rahmen, flächenbündiger Einbau M-PLAN II 512503. Zubehör Schalungsadapter M-PLAN II 512599. Material Thermoplast edelmatt. Farbe aluminium.
Product specifications
Number of units
2
Mounting direction
Horizontal and vertical
Material
Plastic
Material quality
Thermoplastic
Number of modules horizontal (module system)
0
Colour
Aluminium
Number of modules vertical (module system)
0
Number of device inserts horizontal
2
With mounting grid
No
Suitable for subfloor installation duct box
No
Number of device inserts vertical
2
Suitable for wall duct
No
Suitable for built-in installation
No
Label space/information surface
No
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With hinged lid
No
Degree of protection (IP)
IP20
Transparent
No
Type of fastening
Clamping/screw mounting
Width
85.8 mm
Height
154.6 mm
Depth
12.5 mm
Built-in width
85.8 mm
Built-in height
154.6 mm
Diameter bore hole (opening)
60 mm
Flush-mounted installation
Yes
