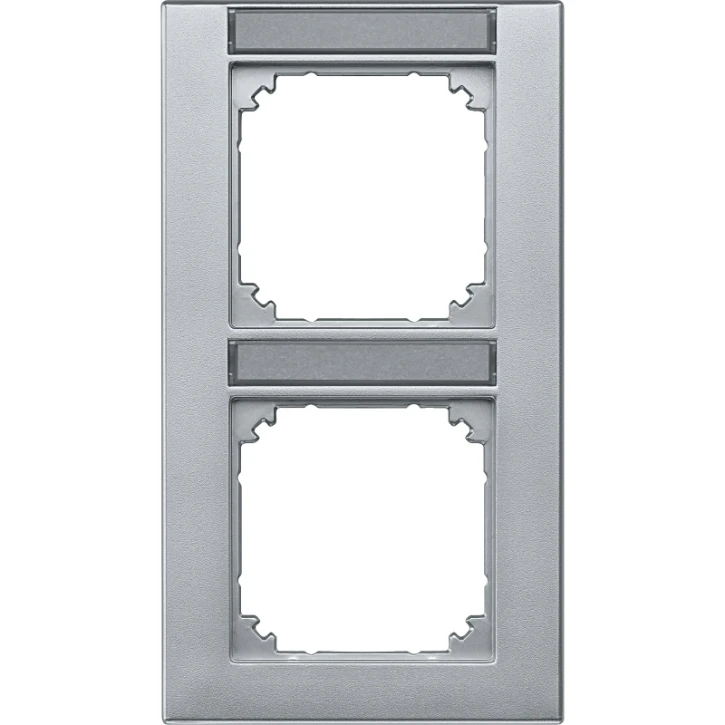

Cover frame for domestic switching devices Merten Merten System M
Add to selection
General information
Ordercode YESSS
0015-5314
Product code
476260
EAN code
4042811010546
Product group
Cover frame for domestic switching devices
Brand
Merten
Serie
Merten System M
Type
476260
M-PLAN-Rahmen, 2fach beschriftbar, senkrechte Montage, aluminium
M-PLAN-Rahmen, 2fach beschriftbar, senkrechte Montage, aluminium
Product description
Zubehör Beschriftungsstreifen für beschriftbare M-PLAN-Rahmen 486100. Lieferumfang Pro Rahmen 2 Beschriftungsstreifen und 2 Sichtfenster. Material Thermoplast edelmatt. Farbe aluminium.
Product specifications
Number of units
2
Mounting direction
Vertical
Material
Plastic
Material quality
Thermoplastic
Number of modules horizontal (module system)
0
Colour
Aluminium
Number of modules vertical (module system)
0
Number of device inserts horizontal
1
With mounting grid
No
Suitable for subfloor installation duct box
No
Number of device inserts vertical
2
Suitable for wall duct
No
Suitable for built-in installation
No
Label space/information surface
Yes
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With hinged lid
No
Degree of protection (IP)
IP20
Transparent
No
Type of fastening
Clamping/screw mounting
Width
85.8 mm
Height
154.6 mm
Depth
10.1 mm
Built-in width
0 mm
Built-in height
0 mm
Diameter bore hole (opening)
60 mm
