M-PLAN-Rahmen, 1fach beschriftbar, polarweiß
- 0015-5296
- |
- 476119
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

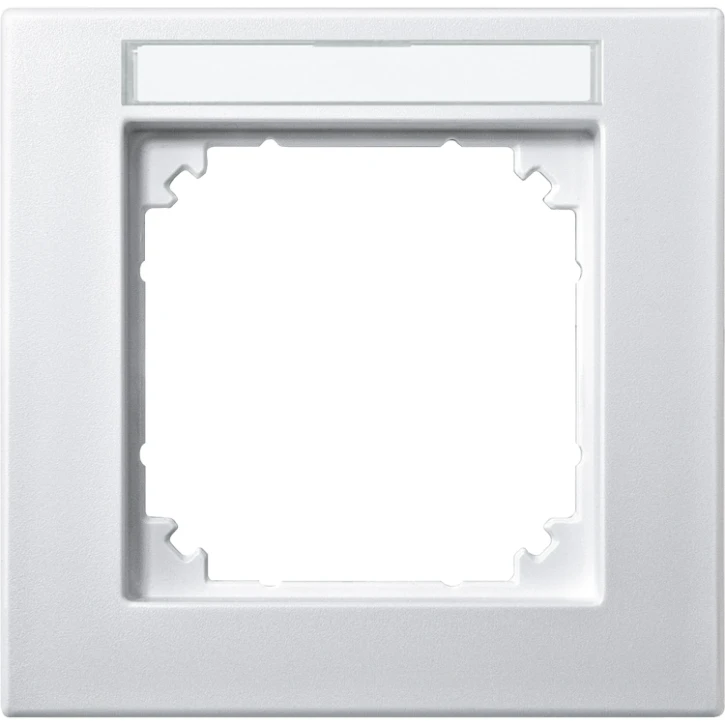

M-PLAN-Rahmen, 1fach beschriftbar, polarweiß
M-PLAN-Rahmen, 1fach beschriftbar, polarweiß
Ordercode YESSS
0015-5296
Product code
476119
EAN code
4042811010126
Product group
Cover frame for domestic switching devices
Brand
Merten
Serie
Merten System M
Type
476119
Product description
Zubehör Beschriftungsstreifen für beschriftbare M-PLAN-Rahmen 486100. Lieferumfang Pro Rahmen 1 Beschriftungsstreifen und 1 Sichtfenster. Material Thermoplast edelmatt. Farbe polarweiß.
Product specifications
Number of units
1
Mounting direction
Horizontal and vertical
Material
Plastic
Material quality
Thermoplastic
Number of modules horizontal (module system)
0
Colour
White
Number of modules vertical (module system)
0
Number of device inserts horizontal
1
With mounting grid
No
Suitable for subfloor installation duct box
No
Number of device inserts vertical
1
Suitable for wall duct
No
Suitable for built-in installation
No
Label space/information surface
Yes
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
RAL-number (similar)
9010
With hinged lid
No
Degree of protection (IP)
IP20
Transparent
No
Type of fastening
Clamping/screw mounting
Width
85.8 mm
Height
83.4 mm
Depth
10.1 mm
Built-in width
0 mm
Built-in height
0 mm
Diameter bore hole (opening)
60 mm
