General information

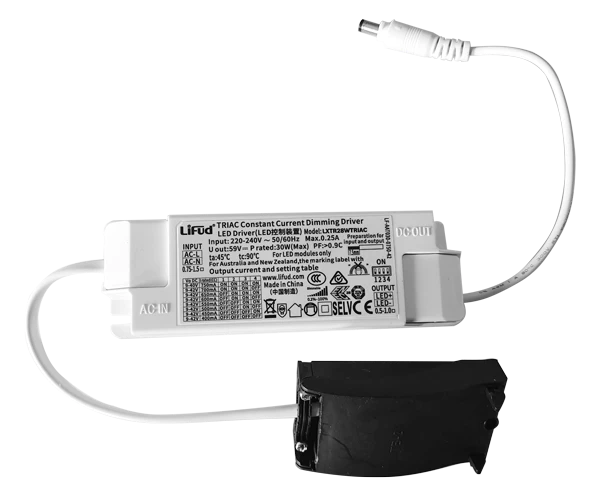

Paneltreiber 28W Triac Dimmung, Anschlussbox
Paneltreiber 28W Triac Dimmung, Anschlussbox
Ordercode YESSS
7602-3368
Product code
LXTR28WTRIAC
EAN code
4055423016790
Product group
LED driver
Brand
LUXNA LIGHTING
Product description
Paneltreiber 28W VAC Triac Dimmung, Anschlussbox
Product specifications
Output power
24 - 30 W
Suitable for outdoor use
No
Dimming DALI
No
Suitable for constant current
Yes
Housing
Plastic housing
Suitable for constant voltage
No
Output voltage
28 - 42 V
Degree of protection (IP)
IP20
Output current
800 - 1100 mA
Suitable for DC-voltage (primary side)
Yes
Length
142 mm
Protection class according to IEC 61140
II
Width
46 mm
Dimming phase cut-off (trailing edge)
Yes
Height
28 mm
Dimming phase cut-on (leading edge)
Yes
Dimming with push-button
No
Operation by Bluetooth
No
Power consumption
30 W
Dimmable
Yes
Dimming DALI-2
No
Input voltage
200 - 240 V
Frequency input voltage
50 - 60 Hz
Overload protection
Yes
Efficiency
97 %
Emergency power supply system
None
Ambient temperature
-20 - 40 °C
