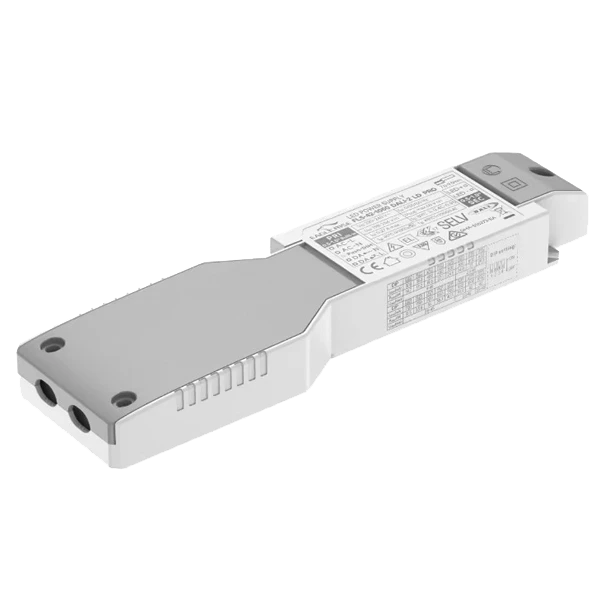

Paneltreiber 28W Dali-2,push dim VAC/DC DIP, Box

7602-3367
|
LXTR28WDALI

263 piece in stock

Don’t have an account? Request account

Over 6.000 products in stock
Order before 17:00 and receive your order the next working day!
Need help? Call --- --- or contact us via email at [email protected]

General information

Paneltreiber 28W Dali-2,push dim VAC/DC DIP, Box Paneltreiber 28W Dali-2,push dim VAC/DC DIP, Box

Ordercode YESSS

7602-3367

Product code

LXTR28WDALI

EAN code

4055423016776

Product group

LED driver

Brand

LUXNA LIGHTING

Product description

Paneltreiber 28W Dali-2,push dim VAC/VDC DIP, Box

Product specifications

Output power

24 - 30 W

Suitable for outdoor use

Dimming DALI

Yes

Suitable for constant current

Yes

Housing

Plastic housing

Suitable for constant voltage

Output voltage

28 - 42 V

Degree of protection (IP)

IP20

Output current

800 - 1100 mA

Suitable for DC-voltage (primary side)

Yes

Length

250 mm

Protection class according to IEC 61140

Width

56 mm

Dimming phase cut-off (trailing edge)

Yes

Height

22 mm

Dimming phase cut-on (leading edge)

Yes

Dimming with push-button

Yes

Operation by Bluetooth

Power consumption

30 W

Dimmable

Yes

Dimming DALI-2

Yes

Input voltage

198 - 240 V

Frequency input voltage

50 - 60 Hz

Overload protection

Yes

Efficiency

98 %

Emergency power supply system

None

Ambient temperature

-20 - 40 °C
