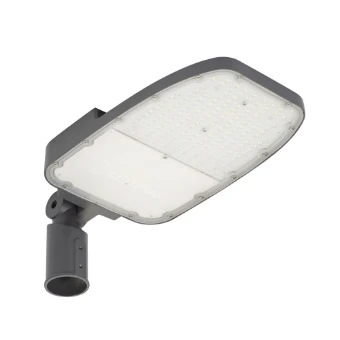

Luminaire for streets and places LEDVANCE STREETLIGHT AREA LARGE RV35ST

Add to selection
General information
Ordercode YESSS
7586-0154
Product code
4099854079924
EAN code
4099854079924
Product group
Luminaire for streets and places
Brand
LEDVANCE
Serie
STREETLIGHT AREA LARGE RV35ST
STREETLIGHT AREA LARGE RV35ST 120W 740 RV35ST GY STREETLIGHT AREA LARGE RV35ST 120W 740 RV35ST GY
Product description

Für ein breites Anwendungsspektrum in der Straßen- und Flächenbeleuchtung. Produkteigenschaften: Lichtverteilung für Straßen mit ähnlicher Straßenbreite wie Lichtpunkthöhe. Mastadapter im Lieferumfang enthalten, geeignet für Maste mit 48...60 mm Zopfmaß. Einstellbarer Mastadapter, geeignet für Mastansatz- und Mastaufsatzmontage. +/- 30° Neigungsverstellung ohne Öffnen des Gehäuses . Hohe Lichtausbeute: bis zu 135 lm/W. Umgebungstemperaturbereich bei Betrieb: -30...50 °C. Hoher Überspannungschutz von bis zu 10 kV (L/N-PE). Produktvorteile: Funktionales und minimalistisches Design. Geringe Wartungs- und Betriebskosten dank langer LED-Lebensdauer. 5 Jahre Garantie. Anwendungsgebiete: Außenanwendung (IP66). Straßen der Klassen M, C und P gem. EN 13201. Parkplätze. Flächenbeleuchtung.

Product specifications
Lamp type
LED not exchangeable
Mounting method
Post top
Housing material
Aluminium
Degree of protection (IP)
IP66
Protection class according to IEC 61140
I
Surface protection
Powder coating
Suitable for spigot size
60 - 60 mm
Housing colour
Grey
LED nominal current at constant current
520 - 520 mA
Suitable for number of light sources
0
Voltage type
AC
Nominal voltage
100 - 240 V
Nominal current
520 - 520 mA
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Adjustable optics
No
Dimming DSI
No
Impact strength
IK08
With light source
Yes
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Remote control
None
Dimming mains voltage modulation
No
With radio control
No
Dimming phase cut-off (trailing edge)
No
Constant light output (CLO)
No
Dimming phase cut-on (leading edge)
No
With light regulation program control
No
Dimming programmable
No
With connection cable
Yes
Dimming RF
No
Cable length
0.5 m
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Rated lifetime L70/B50 at 25 °C
70000 h
Rated life time L90/B10 at 25 °C
30000 h
Light distributor
Focal lens
Rated ambient temperature according to IEC 62722-2-1
-30 - 50 °C
Max. system power
120 W
Luminaire efficacy
135 lm/W
Power factor
0.9
Width
260 mm
Height/depth
73 mm
Length
473 mm
Type of wiring
Ending
Number of poles
3
Connection type
Other
Exchangeable control gear
Yes
