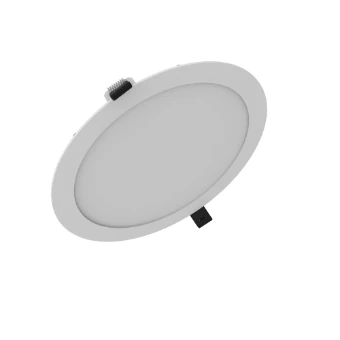

DOWNLIGHT SLIM ALU D205 V 19W MS 840 WT

Add to selection
General information
Ordercode YESSS
7607-7831
Product code
4099854441844
EAN code
4099854441844
Product group
Downlight/spot/floodlight
Brand
LEDVANCE
Serie
DOWNLIGHT SLIM ALU
Type
DL SLIM ALU D205 V 19W MS 840 WT
DOWNLIGHT SLIM ALU D205 V 19W MS 840 WT DOWNLIGHT SLIM ALU D205 V 19W MS 840 WT
STOCK
IN STOCK
0 piece
Product description

Very slim downlights with aluminum housing and luminous efficacy up to 100 lm/W. Product features: Very slim aluminum housing with only 23 mm height. High luminous efficacy: up to 100 lm/W. Multi Lumen function: power steps selectable. Multi Color function: 4000K and 3000K. Type of protection: IP44. Luminaire available in 5 sizes for different cut-outs. Lifetime (L70/B50): 50,000 h (temperature at Ta = 40 °C). Product benefits: Low installation depth. Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen). Very homogenous light distribution. External driver with 3-pole through-wiring feature for flexibility and easy installation. Emergency lighting possible with LEDVANCE Emergency Conversion Box. Energy savings up to 60 % (compared to luminaires that use CFL lamps). Areas of application: Direct replacement for luminaires with compact fluorescent lamps. General illumination. Public areas. Stairways. Corridors. Foyers. Shops. Equipment / Accessories: Accessories for surface mounting available.

Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Not adjustable
With light source
Yes
Housing colour
White
Suitable for low voltage cable system
No
With light sensor
No
Reflector
None
Light distribution
Symmetric
Suitable for number of light sources
0
Lamp holder
None
Type of control gear
LED operating device current-controlled
With control gear
Yes
Surface protection
Powder coating
Nominal current
88 - 68 mA
Dimmable
No
Max. system power
19 W
Surface brushed
No
Nominal voltage
220 - 240 V
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Width
217 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
23 mm
Voltage type
AC
Dimming mains voltage modulation
No
Outer diameter
217 mm
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
II
Dimming Touch and Dim
No
Impact strength
IK03
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Diffuser lens/optic/panel
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
50000 h
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Number of poles
2
Connection type
Push-in clamp
Suitable for workplace according to EN 12464-1
No
Photobiological safety according to EN 62471
RG0
Suitable for wall mounting
Yes
Exchangeable control gear
Yes
Dimming DALI-2
No
Constant light output (CLO)
No
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Built-in diameter
205 - 205 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
70
Max. number of luminaires per miniature circuit breaker C16 (MCB)
60
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
Reflector colour
White
Compatible with Casambi
No
Containing product according to 2019/2020/EU
Yes
Total harmonic distortion (THD)
20 %
Rated luminous flux according to IEC 62722-2- 1
1900 - 950 lm
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP44
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
None
Luminaire efficacy
100 - 100 lm/W
Built-in length
205 - 205 mm
Built-in width
205 - 205 mm
Built-in height
23 - 23 mm
