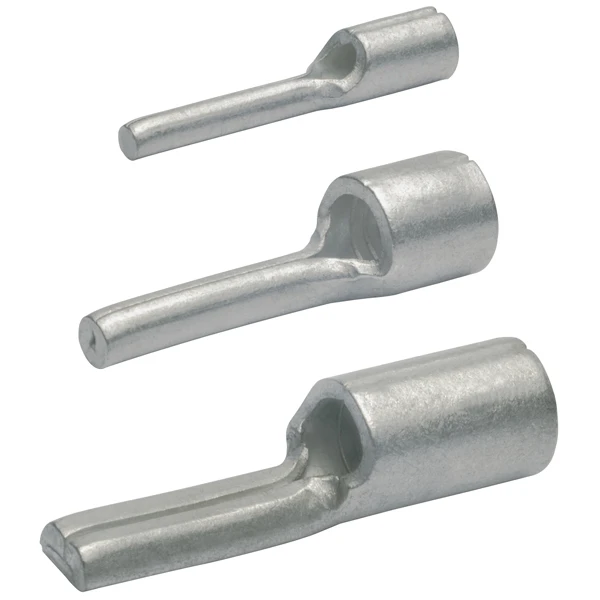

Stiftkabelschuh, 95mm², Cu verzinnt
- 0216-3259
- |
- ST1722
8
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Stiftkabelschuh, 95mm², Cu verzinnt
Stiftkabelschuh, 95mm², Cu verzinnt
Ordercode YESSS
0216-3259
Product code
ST1722
EAN code
4012078068529
Product group
Solderless terminals for copper conductors
Brand
Klauke
Type
ST1722
Product description
Für Leiter z.B. VDE 0295 Klasse 2. Hochwertiges Hartlötverfahren im Pressbereich. Mit Rillenprägung für bessere Kontakteigenschaften. Galvanisch verzinnt zum Schutz gegen Korrosion. Werkstoff Cu-ETP. 95 mm².
Product specifications
Flange shape
Pin shape
Insulation
None
Nominal cross section
95 - 95 mm²
Reel/roll packaging
No
Sleeve form
Short
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
No
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
For pull protected connections
No
Material
Copper
Surface protection
Tinned
Stud size (imperial)
Other
Halogen free
Yes
Flange length
23 mm
Total length
55 mm
Pin width (flat-pin shape terminal)
12.5 mm
According to DIN
No
