General information

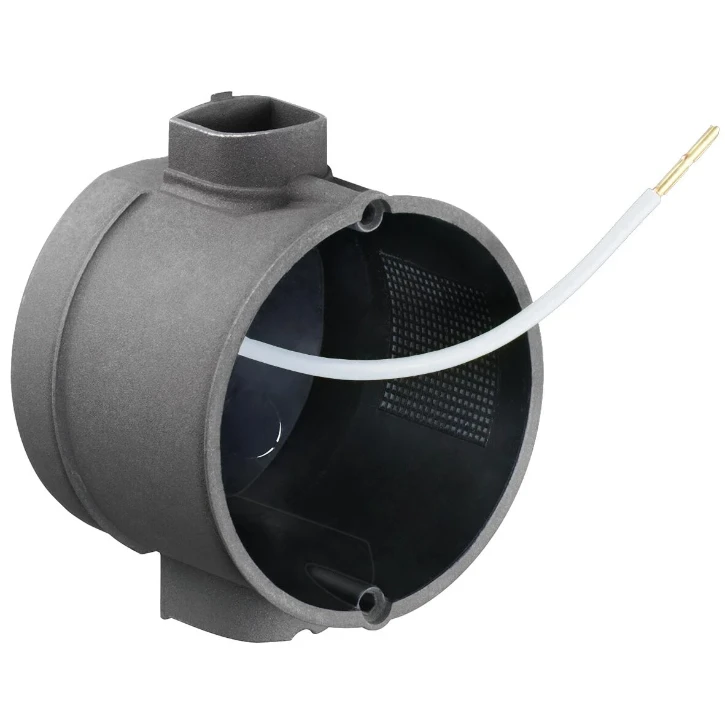

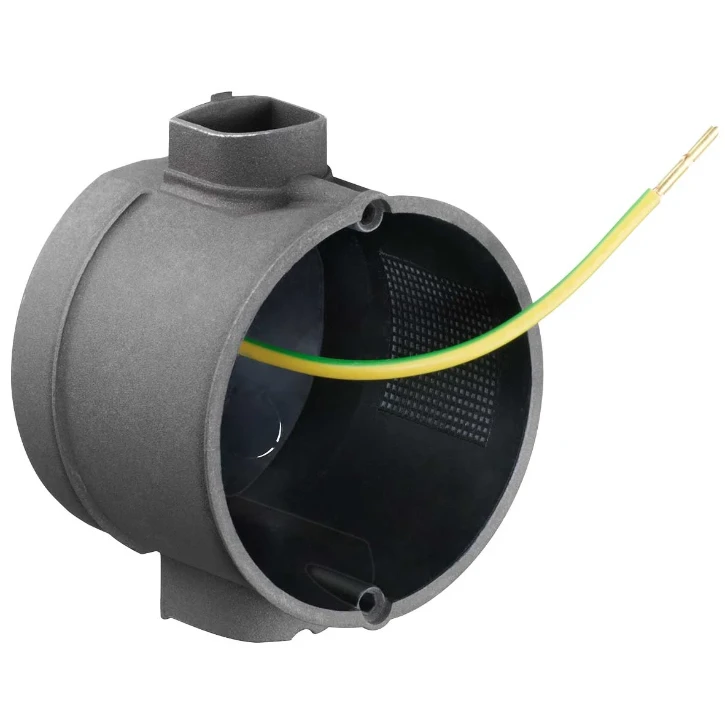

Unterputz Geräte-Verbindungsdose, abgeschirmt
Unterputz Geräte-Verbindungsdose, abgeschirmt
Ordercode YESSS
0057-2767
Product code
1555-88
EAN code
4013456121003
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
KAISER
Serie
Unterputz
Type
1555-88
Product description
Abgeschirmte Geräte-Verbindungsdose (1555-88). Abgeschirmte Geräte-Verbindungsdose für die Unterputz-Installation. Die leitfähige Beschichtung mindert die Aus- und Einstrahlung von Störquellen mit überwiegend elektrischem Wechselfeld. Anwendungsgebiet: Für Einbaugeräte | Tiefe: 63 mm | Installationsart: Abgeschirmt - biologische Bauweise
Product specifications
Mounting method
Flush-mounted
Diameter
60 mm
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
No
Construction type
Device connection box (round/square)
Model
Single
Equipped with
None
Depth
63 - 63 mm
Inner depth
61.4 mm
Mounting switching equipment
Screw or spread out
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20 mm
Housing feed-through by nozzle
Yes
Suitable for cable diameter
133 - 133 mm
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
No
Number of inlets
10
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Colour
Black
Number of included spouts
0
Degree of protection (IP)
IP2X
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
Yes
Max. conductor cross section
2.5 mm²
Cover model
None
Transparent cover
No
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
Tunnel branch pipe
Special application
None
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
Compliant with BS 4662
No
