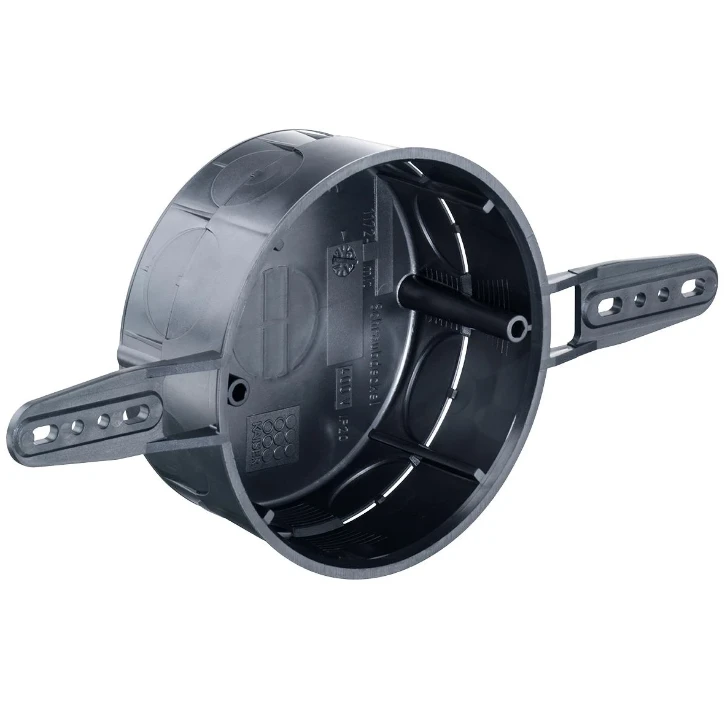

Unterputz Verbindungsdose, für Nagelbefestigung
Add to selection
General information
Ordercode YESSS
0057-2866
Product code
1172-62
EAN code
4013456132108
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
KAISER
Serie
Unterputz
Type
1172-62
Unterputz Verbindungsdose, für Nagelbefestigung
Unterputz Verbindungsdose, für Nagelbefestigung
STOCK
IN STOCK
0
piece
Product description
Verbindungsdose für Nagelbefestigung, Tiefe 36 mm (1172-62). Installationsart: Basis-Installation | Tiefe: 36 mm | Anwendungsgebiet: Für Leitungsverbindungen
Product specifications
Mounting method
Flush-mounted
Diameter
70 mm
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
No
With screws
No
Construction type
Cable junction box
Model
Single
Equipped with
None

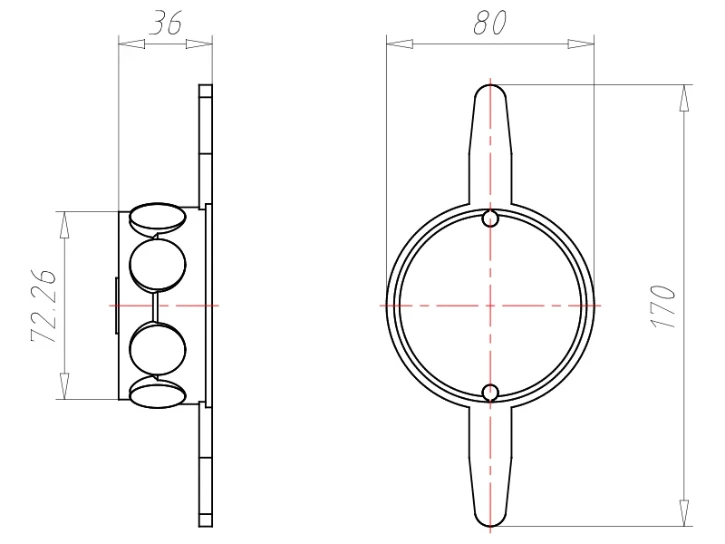

Depth
36 - 36 mm
Width
170 mm
Inner depth
35 mm
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20 mm
Housing feed-through by nozzle
No
Suitable for cable diameter
133 - 133 mm
Housing feed-through by step membrane
No
Pipe locking
Yes
Inlet from the rear
No
Number of inlets
8
Material
Plastic
Pipe locking optional
No
Halogen free
No
Colour
Black
Number of included spouts
0
Degree of protection (IP)
IP2X
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
2.5 mm²
Cover model
None
Transparent cover
No
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
Compliant with BS 4662
No
