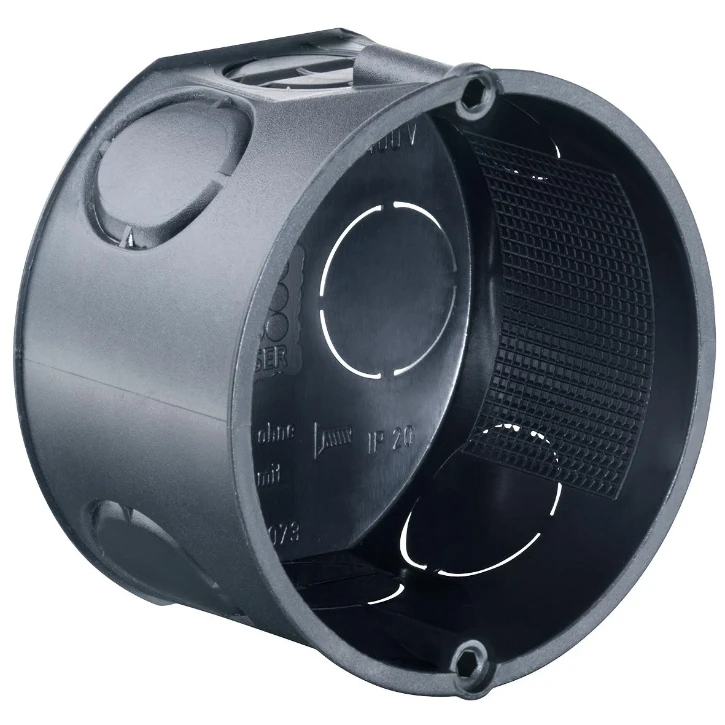

Unterputz Gerätedose, ohne Verbindungsstutzen
- 0057-2725
- |
- 1050-00
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Unterputz Gerätedose, ohne Verbindungsstutzen
Unterputz Gerätedose, ohne Verbindungsstutzen
Ordercode YESSS
0057-2725
Product code
1050-00
EAN code
4013456110007
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
KAISER
Serie
Unterputz
Type
1050-00
Product description

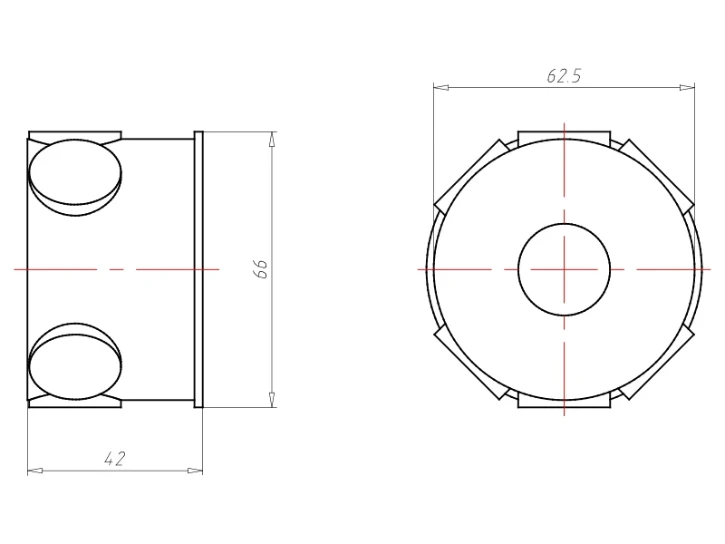

Gerätedose ohne Stutzen, Tiefe 42 mm (1050-00). Installationsart: Basis-Installation | Anwendungsgebiet: Für Einbaugeräte | Tiefe: 42 mm
Product specifications
Mounting method
Flush-mounted
Diameter
60 mm
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
No
Construction type
Built-in installation box (device box)
Model
Single
Equipped with
None
Depth
42 - 42 mm
Inner depth
40.9 mm
For number of device inserts
1
Mounting switching equipment
Screw or spread out
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20 mm
Housing feed-through by nozzle
No
Suitable for cable diameter
114 - 114 mm
Housing feed-through by step membrane
No
Pipe locking
Yes
Inlet from the rear
Yes
Number of inlets
7
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Colour
Black
Number of included spouts
0
Degree of protection (IP)
IP2X
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
2.5 mm²
Cover model
None
Transparent cover
No
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
Compliant with BS 4662
No
