Box/housing for surface mounting on the wall/ceiling KAISER IP68BOX
Add to selection
General information
Ordercode YESSS
6812-7715
Product code
2521
EAN code
4013456550872
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
KAISER
Serie
IP68BOX
Type
2521

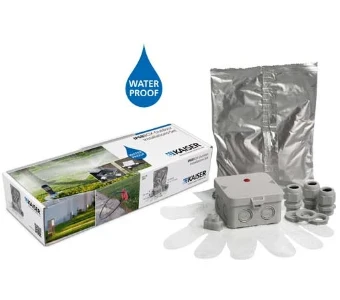

IP68BOX Outdoor Installations-Set, für ungeschützte Installation im Freien, mit Gießharz
IP68BOX Outdoor Installations-Set, für ungeschützte Installation im Freien, mit Gießharz
Product description
IP68BOX Outdoor Installations-Set (2521). Halogenfrei: Ja | Tiefe: 55 mm | Länge: 95 mm | Breite: 95 mm | Schutzart: IP 65/ IP 68
Product specifications
Mounting method
Universal
Degree of protection (IP)
IP68
Material
Plastic
Shape
Square
Max. conductor cross section
6 mm²
Mounting in the soil
Yes
Equipped with
Other
Mounting under water
Yes
Halogen free
Yes
Length
95 mm
Width
95 mm
Depth
45 mm
Sealable
No
Inlet from the rear
No
Connectable
No
Number of inlets
8
Type of housing feed-through
Preembossing
Surface protection
Untreated
Colour
Grey
Cover attachment
Snapped on
Degree of protection (NEMA)
Other
Cover model
Blind cover
Rated insulation voltage Ui
690 V
Castable
Yes
Transparent cover
No
Casting compound included
Yes
Circuit integrity
None
With screening
No
Weatherproof
Yes
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For tube diameter
20/25 mm
Operating temperature
-40 - 70 °C
