General information
Betonbau, B1 Universal-Deckenauslass 45°, 2-teilig, Auslassöffnung Ø 45 mm, Tiefe
Betonbau, B1 Universal-Deckenauslass 45°, 2-teilig, Auslassöffnung Ø 45 mm, Tiefe 72 mm, mit Leuchtenhaken-Aufnahme
Ordercode YESSS
6989-2789
Product code
1249-13
EAN code
4013456551572
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
KAISER
Serie
Betonbau B1
Type
1249-13
Product description

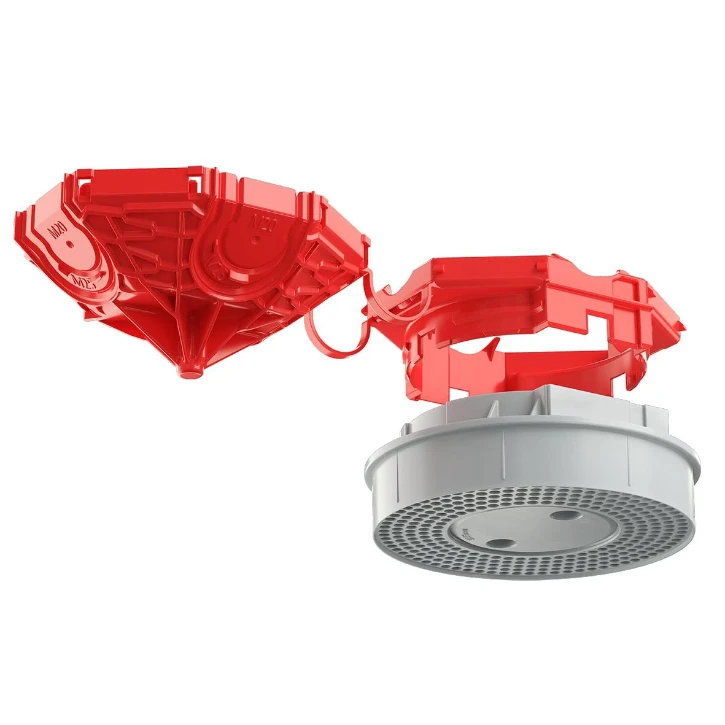

B¹ Universal-Deckenauslass 45° (1249-13).
Product specifications
Mounting method
Concrete building
Diameter
45 mm
Shape
Other
Provided with revolving ring
No
Airtight
No
Couplable
No
With screws
No
Construction type
Cable junction box
Model
Single
Equipped with
None
Length
90 mm
Depth
72 - 72 mm
Width
90 mm
Inner depth
49 mm
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
20/25 mm
Housing feed-through by nozzle
No
Suitable for cable diameter
0 - 16 mm
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
Yes
Number of inlets
4
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Colour
Red
Number of included spouts
0
Degree of protection (IP)
IP3X
Cover attachment
Other
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
2.5 mm²
Cover model
Other
Transparent cover
No
Luminaire hook mounting
Yes
Nozzle
None
Special application
Other
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
0
With partition panel
No
Compliant with BS 4662
No
