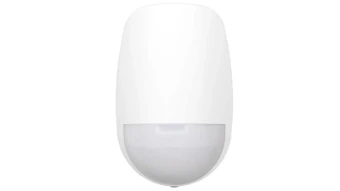

DS-PDP18-EG2(B)(O-STD)

Product description

• Modern design - Delivers a small and sleek detection solution; providing a modern yet unobtrusive finish to complement any room.;
• Detection range - Up to 18m volumetric detection coverage, the Ellipse is the ideal solution for any small to large indoor rooms and spaces.;
• Digital temperature compensation – Digitally adjusts its sensitivity to maintain its specified range when the background temperature is close to body temperature.;
• Automatic sensitivity - self-adapts to changing environmental conditions to maintain stability and intruder catch performance.;
• 3D optics - Improves the detection of moving targets; ensuring more precise signals can be received from the PIR by enabling the perfect focusing of the infra-red signal onto the pyro-electric sensor.;
• Creep-zone protection - covers the blind spot area directly below it, where an intruder may have otherwise avoided detection.;
• Selectable EOL resistors - incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6 and 8K2, as well as tamper resistance values of 1K, 2K2, 4K7 and 5K6; catering for most control panels on the market.;
• Wall and ceiling mount options - can be fitted at a mounting height of 1.8m to 2.4m . There is also a ceiling mount option available if required.;
• Anti-insect interference - Protects the detector from possible insect infestation, as well as shielding air movement in front of its pyro-electric sensor and protecting against adverse reflections from inside the detector housing.;
• Wide voltage - 9 to 16 V wide voltage adaptation with polarity reverse connection protection;
• IFT technology - automatically adjust the upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference and shift the thresholds before the detector goes into false alarm.;
