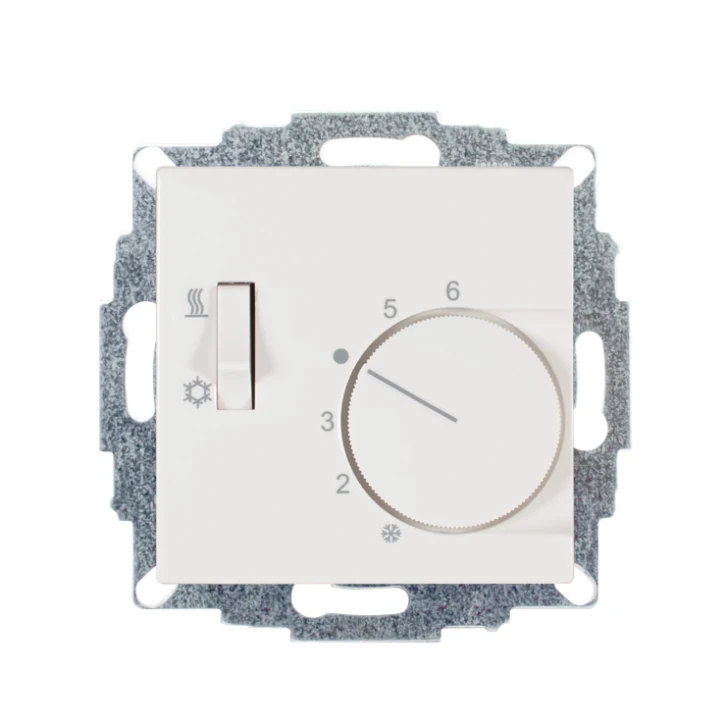

Thermostat UP reinweiß glanz 55x55 230V Umschalter HEIZEN/KÜHLEN
- 5316-3532
- |
- 1255
9
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Thermostat UP reinweiß glanz 55x55 230V Umschalter HEIZEN/KÜHLEN
Thermostat UP reinweiß glanz 55x55 230V Umschalter HEIZEN/KÜHLEN
Ordercode YESSS
5316-3532
Product code
1255
EAN code
4251369612557
Product group
Room thermostat (non-industrial)
Brand
Halmburger
Serie
Raumtemperaturregler Bimetall
Type
RTR-5523(rg)
Product description
Raumtemperaturregler u.P., 230 V, einschl. Zentralscheibe 55x55mm, ohne Abdeckrahmen, Ausführung für Heiz- oder Kühlbetrieb über Ein-Rohr-System zur Ansteuerung von Stellantrieben stromlos geschlossen, mit Umschalter Heiz- oder Kühlbetrieb, Wechslerkontakt 5(2)A, Einstellbereich 5…30°C mit Bereichseinengung, Berührungsschutzkappe, Farbe: reinweiß glänzend, ähnlich RAL9010, passend in folgende Schalterprogramme: Busch-Jaeger balance SI, Gira System 55, Jung Serie A und AS, Hager (Berker) Serie S.1 / B.3 / B.7, Merten Serie System M, Elso Joy
Product specifications
Model
On/Off
Type of power supply
230 V AC
Connection
3-wire
With receiver
No
External sensor
No
Thermal feedback
Parallel
Control characteristic
PID
Number of heater outputs
1
Number of cooler outputs
1
Differential value
0.5 - 0.5 K
Adjustable differential
No
Temperature readable
No
With sound indicator
No
Sensor/feeler type
Bimetal
Mounting method
Flush-mounted
With display
No
Operation
Turn
With tap water circuit
No
Max. contact voltage
230 V
Max. contact load
5 A
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Explosion-proof
No
Colour
White
RAL-number
9010
Height
70.9 mm
Width
70.9 mm
Depth
41.3 mm
Class of the temperature control
I
Standby power consumption (solstandby)
0 W
Measuring range
5 - 30 °C
Suitable for cooling
Yes
Concealed operation
No
Contact type
Change-over contact (NO/NC)
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for heating
Yes
