General information

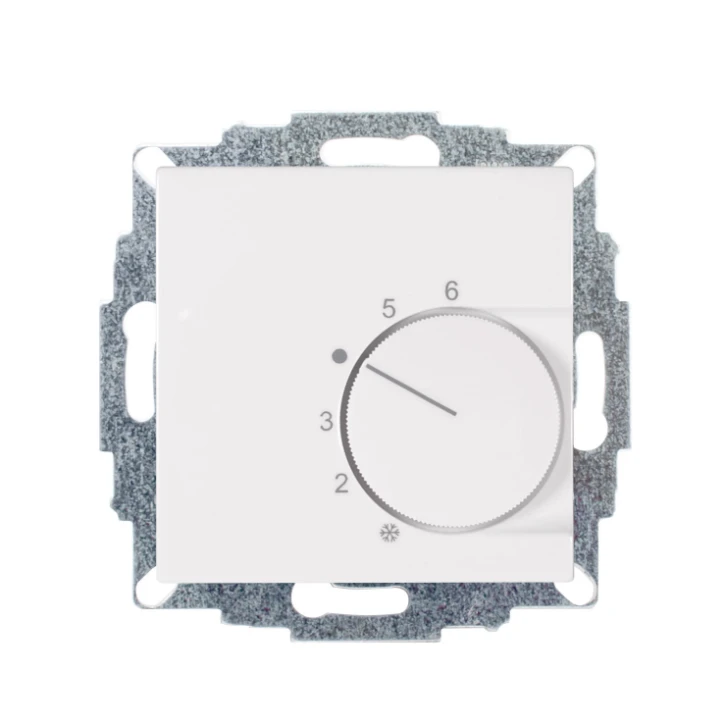

Thermostat UP studioweiß glanz 55x55 230V Wechsler
Thermostat UP studioweiß glanz 55x55 230V Wechsler
Ordercode YESSS
5316-3529
Product code
1276
EAN code
4251369612762
Product group
Room thermostat (non-industrial)
Brand
Halmburger
Serie
Raumtemperaturregler Bimetall
Type
RTR-5520(sg)
Product description
Raumtemperaturregler u.P., 230 V, einschl. Zentralscheibe 55x55mm, ohne Abdeckrahmen, Wechslerkontakt 10(4)A Heizen, 5(2)A Kühlen, für Stellantriebe stromlos geschlossen und stromlos offen, Einstellbereich 5…30°C mit Bereichseinengung, Temperaturabsenkung, Berührungsschutzkappe, Farbe: studioweiß (aktivweiß) glänzend, ähnlich RAL9016, passend in folgende Schalterprogramme: Merten Serie System M, Busch-Jaeger art-linear (Busch-Jaeger in Verbindung mit Zwischenrahmen (1747 BSI-44G) 55x55 nicht im Lieferumfang enthalten)
Product specifications
Model
On/Off
Type of power supply
230 V AC
Connection
3-/4-wire
With receiver
No
External sensor
No
Thermal feedback
Parallel
Control characteristic
PID
Number of heater outputs
1
Number of cooler outputs
1
Differential value
0.5 - 0.5 K
Adjustable differential
No
Temperature readable
No
With sound indicator
No
Sensor/feeler type
Bimetal
Mounting method
Flush-mounted
With display
No
Operation
Turn
With tap water circuit
No
Max. contact voltage
230 V
Max. contact load
10 A
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Explosion-proof
No
Colour
White
RAL-number
9016
Height
70.9 mm
Width
70.9 mm
Depth
41.3 mm
Class of the temperature control
I
Standby power consumption (solstandby)
0 W
Measuring range
5 - 30 °C
Suitable for cooling
Yes
Concealed operation
No
Contact type
Change-over contact (NO/NC)
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for heating
Yes
