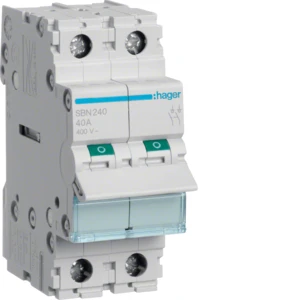

Main switch for distribution board Hager
Add to selection
General information
Ordercode YESSS
2970-1915
Product code
SBN240
Product group
Main switch for distribution board
Brand
Hager
Type
SBN240
Ausschalter 40A 2S 400V AC 2PLE
Ausschalter 40A 2S 400V AC 2PLE
Product description
Ausschalter 40A 2 Schließer 400V AC 2PLE.Ausschalter nach DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4) und DIN EN IEC 60947-3 (VDE 0660-107) mit VDE Zeichen, Beschriftungsmöglichkeit direkt am Gerät und geeignet zum nachträglichen Anbau von Zusatzeinrichtungen.
Product specifications
Switching function
Off switch
Number of poles
2
Rated current
40 A
Rated voltage
400 V
Min. rated voltage
400 V
Rated switching capacity
0.846 kA
Short-circuit breaking capacity (Icw)
0.6 kA
Voltage type
AC
With signal lamp
No
Max. lamp power
0 W
Width in number of modular spacings
2
Built-in depth
68 mm
Degree of protection (IP)
IP20
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
