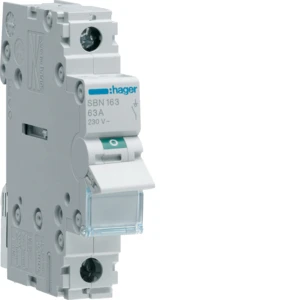

Main switch for distribution board Hager
Add to selection
General information
Ordercode YESSS
2970-1906
Product code
SBN163
Product group
Main switch for distribution board
Brand
Hager
Type
SBN163
Ausschalter 63A 1S 230V AC 1PLE
Ausschalter 63A 1S 230V AC 1PLE
Product description
Ausschalter 63A 1 Schließer 230V AC 1PLE.Ausschalter nach DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4) und DIN EN IEC 60947-3 (VDE 0660-107) mit VDE Zeichen, Beschriftungsmöglichkeit direkt am Gerät und geeignet zum nachträglichen Anbau von Zusatzeinrichtungen.
Product specifications
Switching function
Off switch
Number of poles
1
Rated current
63 A
Rated voltage
230 V
Min. rated voltage
230 V
Rated switching capacity
1.332 kA
Short-circuit breaking capacity (Icw)
0.94 kA
Voltage type
AC
With signal lamp
No
Max. lamp power
0 W
Width in number of modular spacings
1
Built-in depth
68 mm
Degree of protection (IP)
IP20
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
