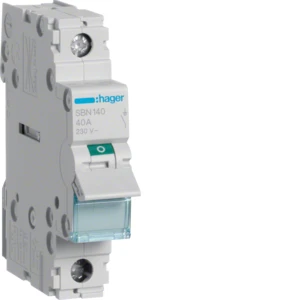

Main switch for distribution board Hager
Add to selection
General information
Ordercode YESSS
2970-1903
Product code
SBN140
Product group
Main switch for distribution board
Brand
Hager
Type
SBN140
Ausschalter 40A 1S 230V AC 1PLE
Ausschalter 40A 1S 230V AC 1PLE
Product description
Ausschalter 40A 1 Schließer 230V AC 1PLE.Ausschalter nach DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4) und DIN EN IEC 60947-3 (VDE 0660-107) mit VDE Zeichen, Beschriftungsmöglichkeit direkt am Gerät und geeignet zum nachträglichen Anbau von Zusatzeinrichtungen.
Product specifications
Switching function
Off switch
Number of poles
1
Rated current
40 A
Rated voltage
230 V
Min. rated voltage
230 V
Rated switching capacity
0.846 kA
Short-circuit breaking capacity (Icw)
0.6 kA
Voltage type
AC
With signal lamp
No
Colour calotte
Grey
Max. lamp power
0 W
Width in number of modular spacings
1
Built-in depth
68 mm
Degree of protection (IP)
IP20
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Imprint/indication
Other
Forced segregation according to DIN VDE 0113
No
