General information

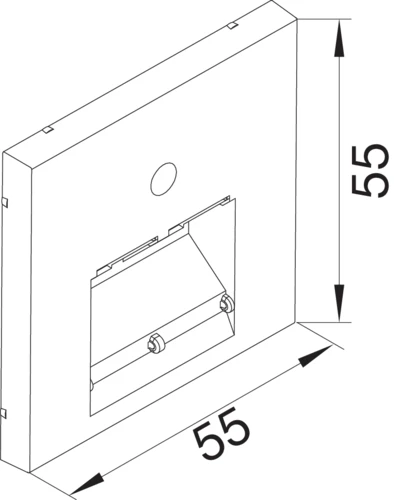

Zentralscheibe 55 UAE 2-fach, lan
Zentralscheibe 55 UAE 2-fach, lan
Ordercode YESSS
6140-8264
Product code
GZUAE2ALAN
Product group
Insert/cover for communication technology
Brand
Hager
Type
GZUAE2ALAN
Product description
Zentralscheibe UAE 2-fach, für Rahmenblende 55, hfr, lack alu
Product specifications
Assembly arrangement
Central cover plate
Utilization
UAE/IAE (ISDN)
Imprintable label
Without indication field
Mounting method
Other
Suitable for degree of protection (IP)
IP00
Support ring
No
Outlet direction
Inclined
With dust cover
No
With hinged lid
No
With imprint
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9006
Type of fastening
Mounting with screw
Transparent
No
Number of modules (module system)
2
With strain relief
No
With buses/couplings
No
Luster terminal
No
Suitable for number of connectors
2
Device width
55 mm
Shielded buses
No
Device height
55 mm
Shielded housing
Yes
Device depth
13 mm
Min. depth of built-in installation box
40 mm
Anti-bacterial treatment
No
With lighting
No
Impact strength
IK07
