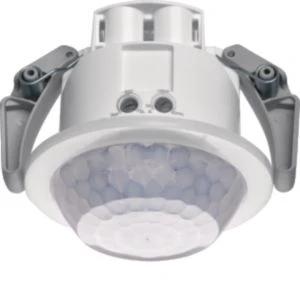

Movement sensor / presence detector complete Hager
Add to selection
General information
Ordercode YESSS
7581-6223
Product code
EED503
Product group
Movement sensor / presence detector complete
Brand
Hager
Product specifications
Model
Presence detector
Colour
White
Degree of protection (IP)
IP41
Detection angle horizontal
360 - 360 °
Max. transmission range frontally
5 m
Forced switch on
No
Max. transmission range sideways
10 m
Max. switching power
0 W
Creep-under protection
No
Response value sensitivity adjustable
Yes
Remote operation
Yes
Constant light control
No
Scan angle
360 °
HVAC-control
No
Forced switch off
No
Animal zone
No
Networkable
Yes
Optimum mounting height
2.5 m
Max. presence range
78 m²
Staircase monitoring
No
Bridging switch
No
With remote control
Yes
Suitable for wireless transmission
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Suitable for ceiling mounting
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Connection type
Push-in clamp
Surface finishing
Glossy
RAL-number (similar)
9010
Min. switch-on time
2 s
Voltage type
AC
Anti-bacterial treatment
No
Max. duty cycle
60 min
Response value luminosity
5 - 2000 lx
Switch-off delay
0 s
Switching-on delay
0 s
Substation input
Yes
Impact strength
IK04
Pivoting range sensor, horizontal
0 - 0 °
Frequency
50 - 60 Hz
Pivoting range sensor, vertical
0 - 0 °
Suitable for C-load
No
Number of switching zones
1
Min. starting current
0 A
Height
103.3 mm
Depth
80 mm
Diameter
85 mm
Built-in width
0 mm
Built-in depth
82 mm
Built-in length
0 mm
Built-in diameter
68 mm
Min. depth of built-in installation box
0 mm
Max. switching power LED
0 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Mit Akustiksensor
No
With connection cable
No
