S3000 aux.ins. 3-wire Insert
- 6407-2645
- |
- 540900
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

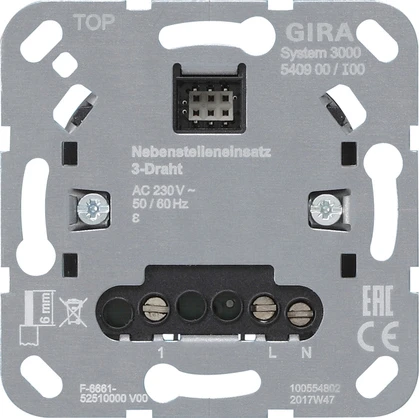

S3000 aux.ins. 3-wire Insert
S3000 aux.ins. 3-wire Insert
Ordercode YESSS
6407-2645
Product code
540900
EAN code
4010337048329
Product group
Dimmer
Brand
Gira
Serie
Non-Design
Type
540900
Product description
System 3000 auxiliary insert, 3-wire - Auxiliary unit operation of inserts with auxiliary input from System 3000. - Operation with suitable operating top unit from System 3000. - Operation with neutral conductor connection. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Sensor channel 1-gang/2-gang. - Wireless control of other devices for KNX possible as a sensor. - Temperature detection. - The three-wire auxiliary unit functions as a power supply for the RF operating top unit 1-gang/2-gang for KNX. Can function as a mains-powered transmitter in conjunction with KNX RF operating top units and eNet operating top units.
Product specifications
Assembly arrangement
Basic element
Operating method
Push button
Light value memory
Yes
App control via Bluetooth
No
Serial dimmer
No
Dimming phase cut-off (trailing edge)
Yes
Type of load
Universal and LED Retrofit
Substation input
No
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
Halogen free
No
Suitable for degree of protection (IP)
IP20
Nominal voltage
230 - 230 V
Frequency
50 - 60 Hz
Connection type
Screwed terminal
Nominal power resistive load
20 - 20 W
Nominal power inductive load
20 - 20 VA
Nominal power capacitive load
3 - 3 VA
Max. switching power LED
120 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
