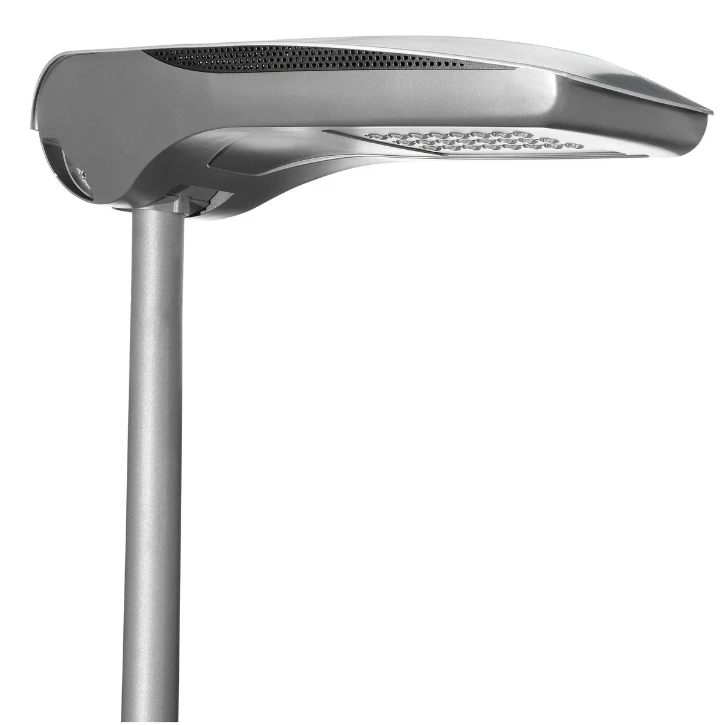

LED-Strassenleuchte 4000K 68W dimmbar 1-10V Straßenbeleuchtungsoptik

  • 7598-6715
  • |
  • GW87411
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

LED-Strassenleuchte 4000K 68W dimmbar 1-10V Straßenbeleuchtungsoptik LED-Strassenleuchte 4000K 68W dimmbar 1-10V Straßenbeleuchtungsoptik
Ordercode YESSS
7598-6715
Product code
GW87411
EAN code
8011564804647
Product group
Luminaire for streets and places
Brand
GEWISS LIGHTING
Serie
OTHER STR/URB GW
Type
GW87411

Product description

Straßenleuchte bestehend aus Abdeckung, Rahmen und Mastbefestigung aus pulverbeschichtetem Aluminiumdruckguss: PA6 Seitenlüftungsgitter. Kupferarmes Aluminium mit Pulverbeschichtung nach der korrosionsstabilisierender Vorbehandlung. Überspannungsschutz, CM bis 12 kV, gemäß IEC EN 61000-4-5 (Durch einen Drittanbieter qualifiziert) ohne zusätzliche Schutzeinrichtungen. Optisches System mit PMMA-Linsen, bestehend aus verschiedenen unterschiedlichen Linsen. Durch diese photometrische Lichtverteilung und Anzahl der Module, werden mit den verschiedenen Installationsparametern die normativen Anforderungen für Straßen erfüllt. Betrieb bis zu einer Umgebungstemperatur von 50°C, jedoch mit Reduzierung des Treiberstroms, wie in der Bedienungsanleitung angegeben.

Product specifications

Lamp type
LED not exchangeable
Mounting method
Post top/side entry
Housing material
Aluminium
Degree of protection (IP)
IP66
Protection class according to IEC 61140
II
Surface protection
Powder coating
Suitable for spigot size
42 - 76 mm
Lamp holder
None
Housing colour
Aluminium
Material cover
Plastic, transparent
Suitable for number of light sources
2
Voltage type
AC
Nominal voltage
220 - 240 V
Nominal current
700 - 700 mA
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Adjustable optics
No
Dimming DSI
No
Impact strength
IK08
With light source
Yes
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Remote control
None
Dimming mains voltage modulation
No
With radio control
No
Dimming phase cut-off (trailing edge)
No
Constant light output (CLO)
No
Dimming phase cut-on (leading edge)
No
With light regulation program control
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Colour of light
White
Dimming Zigbee
No
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Light distributor
Focal lens
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Max. system power
68 W
Luminaire efficacy
99 lm/W
Power factor
0.9
Width
403 mm
Height/depth
185 mm
Length
726 mm
Type of wiring
Ending
Number of poles
2
Conductor cross section
2.5 mm²
Connection type
Screwed terminal
Exchangeable control gear
No
Type of connection for sensor/communication module
Other
With light sensor
No
Operation by Bluetooth
No
Dimmable
No
Dimming DALI-2
No
Containing product according to 2019/2020/EU
Yes
Rated luminous flux according to IEC 62722-2- 1
6760 - 6760 lm
Solar powered
No
With integrated PV panel
No
Suitable for off-grid power system
No
Dimming D4i
No
Connectable conductor cross section
1.5 - 2.5 mm²
Zhaga-D4i certified
No
With movement sensor
No
With presence detector
No
Manufacturer's website

Recommended products

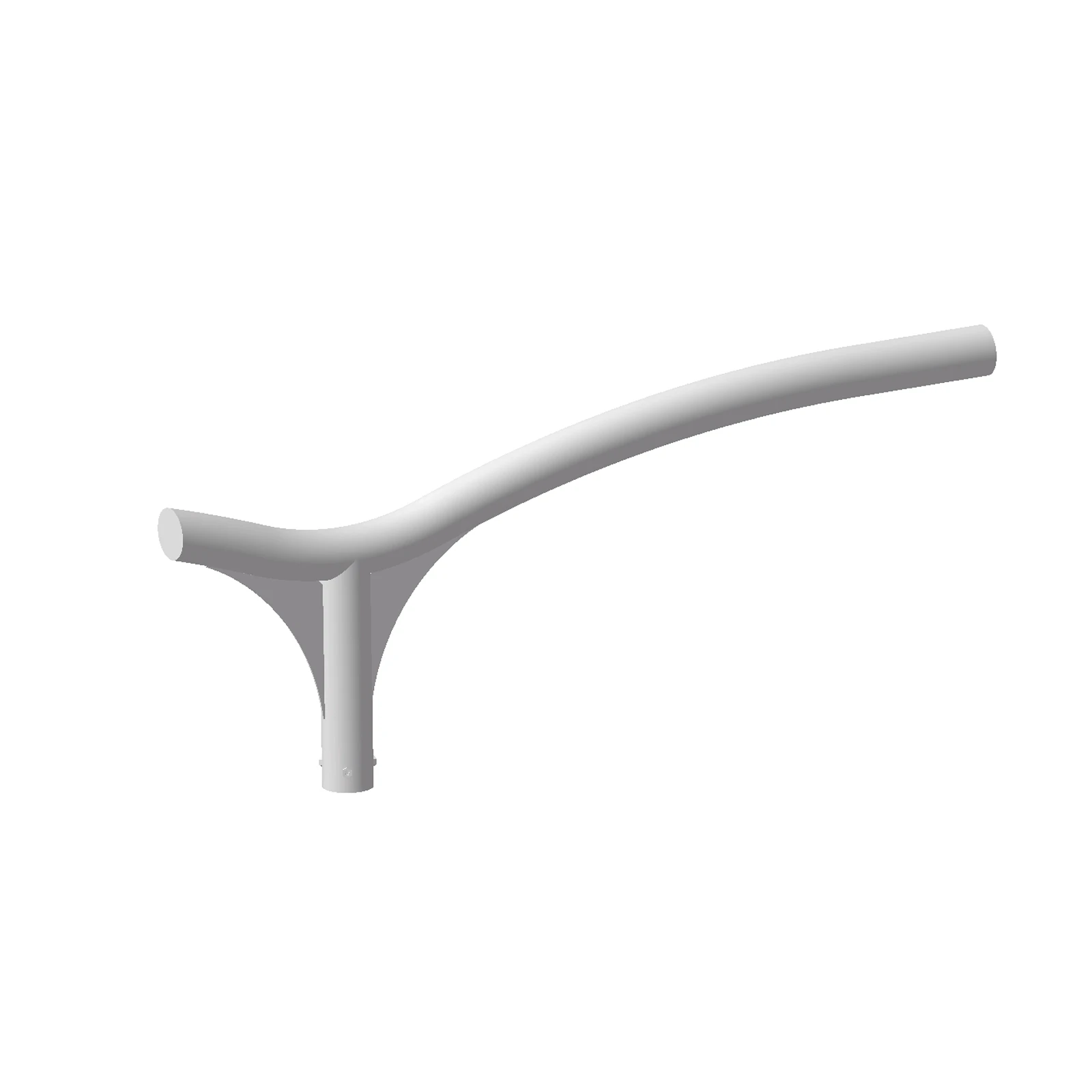

Accessories/spare parts for light pole GEWISS LIGHTING STREET/URBAN OLD
