Fehlerstromschutzschalter (RCCB) 40/0.03A Typ B 4P 4TE
- 6879-7180
- |
- GWD4532
39
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

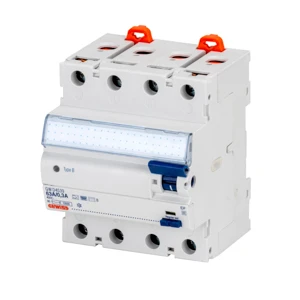

Fehlerstromschutzschalter (RCCB) 40/0.03A Typ B 4P 4TE
Fehlerstromschutzschalter (RCCB) 40/0.03A Typ B 4P 4TE
Ordercode YESSS
6879-7180
Product code
GWD4532
EAN code
8034035018787
Product group
Residual current circuit breaker (RCCB)
Brand
Gewiss
Serie
Energy
Type
GWD4532
Product description
FI- Schutzschalter Typ B als netzspannungsunabhaengiger Fehlerstrom-Schutzschalter (RCCB) EN61008-1. Geeignet zum nachtraeglichen Anbau von 1 Zusatzeinrichtung. Anschluss (max): 35qmm.
Product specifications
Number of poles
4
Rated current
40 A
Rated fault current
0.03 A
Leakage current type
B
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Width in number of modular spacings
4
Selective protection
No
Built-in depth
72 mm
Additional equipment possible
Yes
Mounting method
DIN rail
With interlocking device
Yes
Frequency
50/60 Hz
Surge current capacity
3 kA
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 40 °C
Short-time delayed tripping
Yes
Pollution degree
2
Connectable conductor cross section multi-wired
50 - 50 mm²
Connectable conductor cross section solid-core
50 - 50 mm²
Voltage type
AC
Explosion-proof
No
Power loss
3.8 W
RAL-number (similar)
7035
