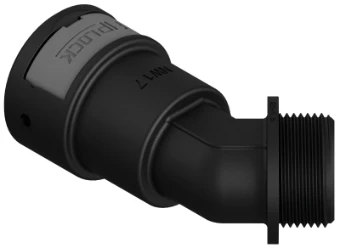

Screw connection for corrugated plastic hose Fränkische Rohrwerke
Add to selection
General information
Ordercode YESSS
7532-5895
Product code
4891023100
EAN code
4049504257745
Product group
Screw connection for corrugated plastic hose
Brand
Fränkische Rohrwerke
Product specifications
Nominal diameter
48 mm
Lowest inner diameter hose
47.5 mm
Max. outer diameter hose
54.4 mm
Model
45°-elbow
Degree of protection (IP)
IP66/IP67/IP68/IP69
Material
Polyamide (PA)
Nominal size in inch
Other
Revolving thread
No
Construction type
External thread
Type of connection
Thread
Thread type
Metric
Thread connection size
M63 x 1.5
Thread material
Polyamide (PA)
Thread length
19 mm
Total length
126 mm
Total height
71 mm
Colour
Black
Approved in combination with protective conduit CSA
Yes
Approved in combination with protective conduit UR
Yes
Approved in combination with protective conduit according to DIN EN 61386-23
No
Approved in combination with protective conduit Lloyd's Register
No
Operating temperature
-50 - 120 °C
Thread per inch
16.93
