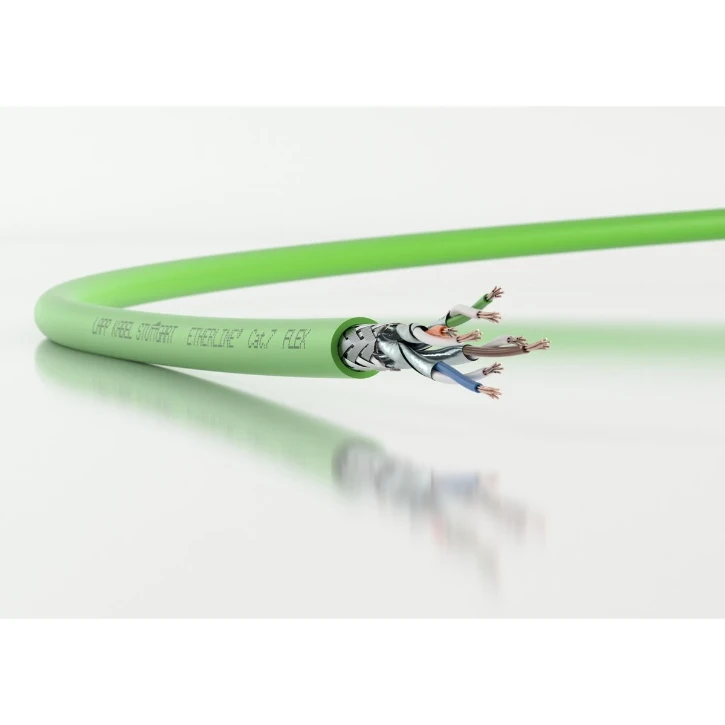

ETHERLINE® Cat.7 FLEX 4x2x26/7 500 M

  • 6398-2360
  • |
  • 2170934/500
500 m in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

ETHERLINE® Cat.7 FLEX 4x2x26/7 500 M ETHERLINE® Cat.7 FLEX 4x2x26/7 500 M
Ordercode YESSS
6398-2360
Product code
2170934/500
EAN code
4044777767519
Product group
Data and communication cable
Brand
ETHERLINE®
Type
Ethernet-Leitung

Product description

Zur strukturierten Gebäudeverkabelung gemäß EN 50173 und ISO/IEC 11801. Für alle LAN-Netzwerke und Ethernet-Anwendungen bis 10GBase-T geeignet. . Auch für EtherCAT- und EtherNet/IP-Anwendungen geeignet. Geeignet für die Patchkabel-Konfektion bis 60 m Kabellänge. . Zur festen Verlegung und gelegentlichen Bewegung. Variante „FLEX“ mit reduziertem Leiterquerschnitt ist für Anwendungen mit limitierten Platzverhältnissen geeignet. PUR-Außenmantel ist unempfindlich gegenüber mineralölbasierten Schmiermitteln und vielfach chemisch beständig. Flexibler Einsatz bei bis zu ‑40 °C möglich. Zur strukturierten Gebäudeverkabelung gemäß EN 50173 und ISO/IEC 11801. Für alle LAN-Netzwerke und Ethernet-Anwendungen bis 10GBase-T geeignet. . Auch für EtherCAT- und EtherNet/IP-Anwendungen geeignet. Geeignet für die Patchkabel-Konfektion bis 60 m Kabellänge. . Zur festen Verlegung und gelegentlichen Bewegung. Variante „FLEX“ mit reduziertem Leiterquerschnitt ist für Anwendungen mit limitierten Platzverhältnissen geeignet. PUR-Außenmantel ist unempfindlich gegenüber mineralölbasierten Schmiermitteln und vielfach chemisch beständig. Flexibler Einsatz bei bis zu ‑40 °C möglich.

Product specifications

Conductor surface
Bare
Nominal cross section conductor
0.14 mm²
Conductor category
Class 2 = stranded
Number of cores
8
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
Foil
Stranding
Other
Screen over stranding
Braiding
Longitudinal water blocking cable
No
Radial water blocking cable
No
Protective sheath
Polyurethane (PUR)
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Green
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Halogen free according to EN IEC 60754-2
No
Flame retardant
Other
Low smoke according to EN IEC 61034-2
No
Oil resistant according to EN IEC 60811-404
Yes
Oil resistant (according to IEC 60811-404)
Yes
Circuit integrity
None
Outer diameter approximate
6.4 mm
Min. permitted bending radius, moving application/free movement
67 mm
Min. permitted bending radius, stationary application/permanent installation
26.8 mm
Permitted cable outer temperature during assembling/handling
-40 - 80 °C
Permitted cable outer temperature after assembling without vibration
-40 - 80 °C
Category
7
NVP value
0.78 %
Conductor material
Copper
AWG size
26
Core identification according to HD 308 S2
No
Cable geometry
Round
Certified for shipboard application
No
Weight
46 kg/km
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
