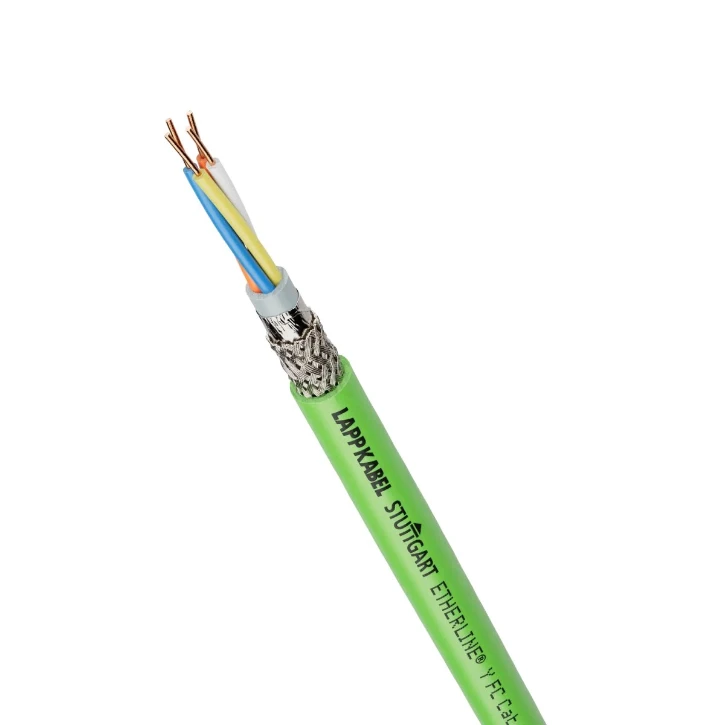

ETHERLINE® Y FC Cat.5 500 M

  • 1802-3338
  • |
  • 2170893/500
2000 m in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

ETHERLINE® Y FC Cat.5 500 M ETHERLINE® Y FC Cat.5 500 M
Ordercode YESSS
1802-3338
Product code
2170893/500
EAN code
4044774753331
Product group
Data and communication cable
Brand
ETHERLINE®
Type
Ethernet-Leitung

Product description

Zur festen Verlegung im PROFINET-Netzwerk (Typ A), bedingt durch Massivleiter-Aufbau. Auch für EtherCAT- und EtherNet/IP-Anwendungen geeignet. Einsetzbar in trockenen und feuchten Umgebungen. Für mittlere mechanische Beanspruchung geeignet. PVC-Außenmantel ist beständig gegenüber Säuren und Laugen und bedingt ölbeständig. Variante „YY“ für den Außenbereich geeignet, unter Beachtung des Temperaturbereichs. Zur festen Verlegung im PROFINET-Netzwerk (Typ A), bedingt durch Massivleiter-Aufbau. Auch für EtherCAT- und EtherNet/IP-Anwendungen geeignet. Einsetzbar in trockenen und feuchten Umgebungen. Für mittlere mechanische Beanspruchung geeignet. PVC-Außenmantel ist beständig gegenüber Säuren und Laugen und bedingt ölbeständig. Variante „YY“ für den Außenbereich geeignet, unter Beachtung des Temperaturbereichs.

Product specifications

Conductor surface
Bare
Conductor category
Class 1 = solid
Number of cores
4
Stranding element
Quad
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
None
Stranding
Other
Screen over stranding
Braiding
Longitudinal water blocking cable
No
Radial water blocking cable
No
Protective sheath
Polyvinyl chloride (PVC)
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Other
Colour outer sheath
Green
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Halogen free according to EN IEC 60754-2
No
Flame retardant
Other
Low smoke according to EN IEC 61034-2
No
Oil resistant according to EN IEC 60811-404
No
Oil resistant (according to IEC 60811-404)
No
Circuit integrity
None
Outer diameter approximate
6.5 mm
Min. permitted bending radius, stationary application/permanent installation
68 mm
Permitted cable outer temperature during assembling/handling
-20 - 60 °C
Permitted cable outer temperature after assembling without vibration
-40 - 80 °C
Category
5E
NVP value
0.67 %
Conductor material
Copper
AWG size
22
Core identification according to HD 308 S2
No
Cable geometry
Round
Certified for shipboard application
No
Weight
70 kg/km
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
