General information

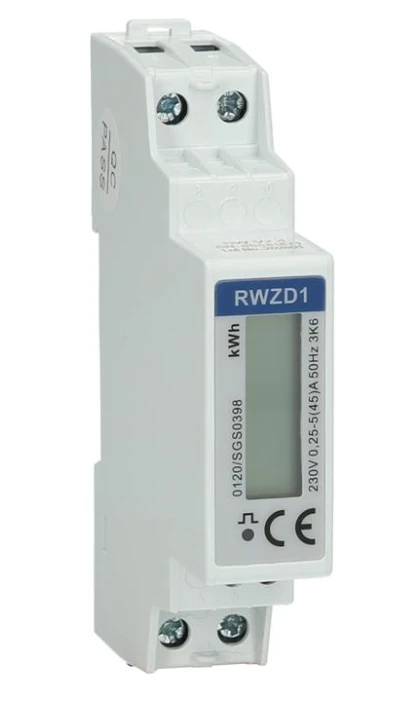

Wechselstromzähler digital 1 Din
Wechselstromzähler digital 1 Din
Ordercode YESSS
7592-7892
Product code
RWZD1-MID
Product group
Electricity meter
Brand
ERIS CONSUMER
Product description
Wechselstromzähler digital 1 Din Wechselstromzähler Wechselstromzähler,MID-zertifiziert,Anzeige: LCD mit Hintergrundbeleuchtung (5-stellig + 2 Dezimalstellen) Mit Rücklaufsperre,Einbaubreite 1 TE,Eingang: 1-phasig/2 Leiter,Nennspannung: 230 V AC,Betriebsspannung: 161...300 V AC,Nennstrom: 10 A,Grenzstrom: 100 A Impulsausgang: 1.000 imp/kwh,Frequenzbereich: 50 Hz (+/- 10 %) Genauigkeitsklasse: 1,Maße (B x H x T): 17 x 119 x 62 mm Umgebungstemperatur: -20...50 °C,Schutzart: IP51,Anschluss: Klemmenanschluss
Product specifications
Model
Direct measurement
Mounting method
DRA (DIN-rail adaptor)
Energy type
Effective power
Tariff type
One-tariff
Type of meter
Electronic
Nominal current (In)
5 A
Max. current (Imax)
45 A
Nominal voltage (Un) N-L
176 - 276 V
Nominal voltage (Un) L-L
176 - 276 V
Frequency
50 - 60 Hz
Accuracy class
A
Pole type
Single phase
Suitable for
Purchase
Measurement type load profile
Yes
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
1000 - 1000 Imp/kWh (kvarh)
Type of indication
Digital
Width in number of modular spacings
1
Width
17.6 mm
Depth
62 mm
Height
119 mm
Type of interface
EN 62056-21
Degree of protection (IP)
IP51
Power consumption
2 W
