General information

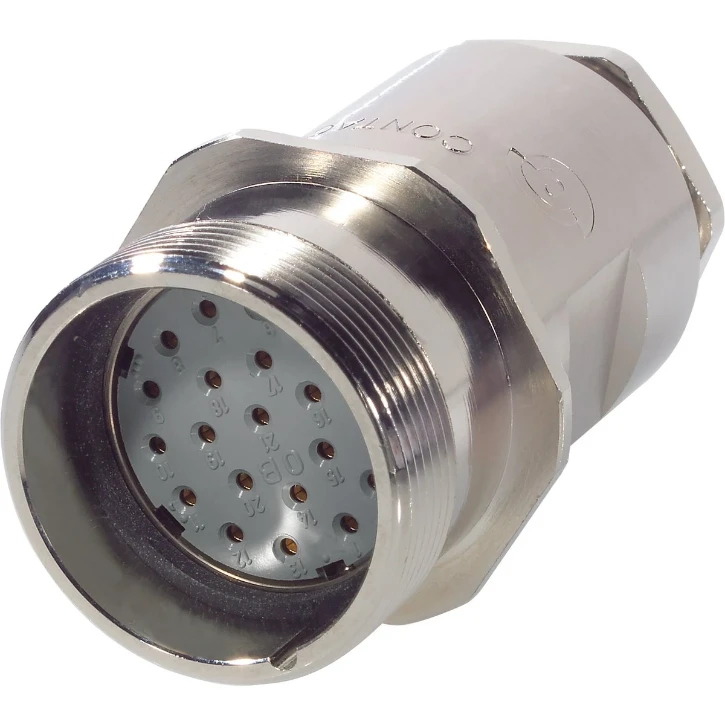

202050AF+40250121 CIRCULAR COMBIN.
202050AF+40250121 CIRCULAR COMBIN.
Ordercode YESSS
0708-5785
Product code
00008779
EAN code
4044773524536
Product group
Circular connector for field assembly (industrial connector)
Brand
EPIC®
Type
Kupplungsgehäuse
Product description
Maschinen- und Apparatebau. Mess-, Steuer- und Regeltechnik. Maschinen- und Apparatebau. Mess-, Steuer- und Regeltechnik.
Product specifications
Contact type
Bus
Diameter connector
30 mm
Number of data contacts
21
Type of housing
Straight
Number of control contacts
21
Rated current In
7.5 A
Ambient temperature
-40 - 100 °C
Rated voltage
24 V
Overvoltage category
III
Pollution degree
3
Type of electric connection
Soldering connection
Material of contact surface
Gold
Housing material
Brass
Coating housing
Other
Type of locking
Other
With protective conductor
No
Degree of protection (IP), mounted
IP67
Min. number of insertion cycles
500
Screened
No
With status indication
No
