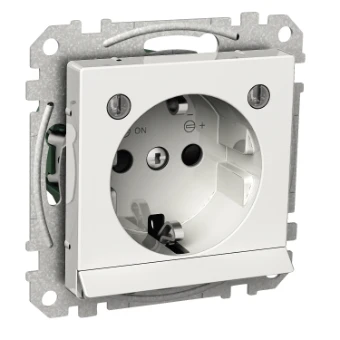

Socket outlet Elso
Add to selection
General information
Ordercode YESSS
7601-3978
Product code
WDE002333
EAN code
3606480203565
Product group
Socket outlet
Brand
Elso
Product specifications
Model
Schutzkontaktsteckdose CEE 7/3 (Typ F)
Mounting method
Flush mounted (plaster)
Connection type
Push-in clamp
Number of active Pins (round)
2
With enhanced contact protection
Yes
With signal lamp
Yes
With hinged lid
No
Suitable for degree of protection (IP)
IP20
Imprint/indication
None
Number of phases
1
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Lockable
No
Eject-mechanism
No
Transparent
No
Insulated mounting
Yes
Over voltage protection
Yes
Fault current protection
No
With function lighting
Yes
With miniature fuse
Yes
With orientation lighting
Yes
Special power supply
No special power supply
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With on/off switch
No
Rotated central insert
No
With loop through function
Yes
Nominal current
16 A
Nominal voltage
250 V
Frequency
50 - 60 Hz
Anti-bacterial treatment
No
Device width
71 mm
Device height
71 mm
Device depth
39 mm
Min. depth of built-in installation box
28 mm
Metallic colour
No
Schutzkontakt
Erdungsclips
Anzahl der Durchschleifungen
1
