Dimmer Elso ELSO Unterputzeinsätze
Add to selection
General information
Ordercode YESSS
1914-1762
Product code
ELG174201
EAN code
4013984193268
Product group
Dimmer
Brand
Elso
Serie
ELSO Unterputzeinsätze
Type
ELG174201

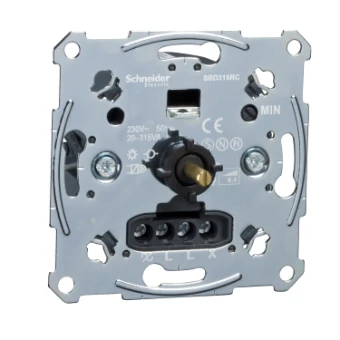

Dimmer-Einsatz Phasenabschnitt Druckaus-Wechselschalter 20-315WVA
Dimmer-Einsatz Phasenabschnitt Druckaus-Wechselschalter 20-315WVA
Product description
Mit Druck-Aus-/Wechselschalter Für Glühlampen und dimmbare elektronische Trafos, 230 V, 50 Hz Mit reversiblem Kurzschluss und Thermoschutz, geräuschlose Funktion, Memoryfunktion Typ SBD315RC.
Product specifications
Assembly arrangement
Basic element
Method of operation
Turn/push button
Light value memory
Yes
App control via Bluetooth
No
Dimming phase cut-on (leading edge)
No
Serial dimmer
No
Dimming phase cut-off (trailing edge)
Yes
Type of load
Capacitive load
Substation input
No
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Suitable for degree of protection (IP)
IP20
Transparent
No
Nominal voltage
230 - 230 V
Frequency
50 - 50 Hz
Device width
71 mm
Device height
71 mm
Device depth
29 mm
Connection type
Screwed terminal
Core cross section
2.5 - 2.5 mm²
Min. depth of built-in installation box
46 mm
Nominal power resistive load
20 - 315 W
Nominal power capacitive load
20 - 315 VA
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Number of units
1
Min. brightness controllable
Yes
Power consumption
315 W
