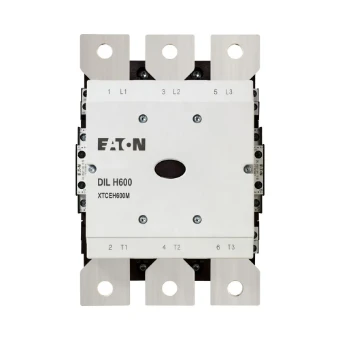

Power contactor, AC switching Eaton
Add to selection
General information
Ordercode YESSS
7514-5792
Product code
197905
EAN code
04015081954247
Product group
Power contactor, AC switching
Brand
Eaton
Contactor, Ith =Ie: 850 A, RA 250: 110 - 250
Contactor, Ith =Ie: 850 A, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V
Product description
Contactor, DILH, Rated operational current (Ith = Ie): 850 A, Rated control supply voltage: 110 - 250 V AC, 110 - 350 V DC, Connection: Screw terminals, Degree of protection: IP00, Overvoltage category: III, Pollution degree: 3
Product specifications
Rated operation power at AC-3, 400 V
0 kW
Voltage type for actuating
AC/DC
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Type of electrical connection of main circuit
Rail connection
Modular version
No
Rated control supply voltage at AC 50 Hz
110 - 250 V
Rated control supply voltage at AC 60 Hz
110 - 250 V
Rated operation power NEMA
0 kW
Rated control supply voltage at DC
110 - 350 V
Rated operation current Ie at AC-1, 400 V
850 A
Rated operation current Ie at AC-3, 400 V
0 A
Rated operation current Ie at AC-4, 400 V
0 A
Rated operation power at AC-4, 400 V
0 kW
Operating voltage at AC 50 Hz
110 - 250 V
Operating voltage at AC 60 Hz
110 - 250 V
Width
160 mm
Height
237 mm
Depth
216 mm
