Front element for push button Eaton
Add to selection
General information
Ordercode YESSS
6300-3835
Product code
188027
EAN code
04015081857128
Product group
Front element for push button
Brand
Eaton

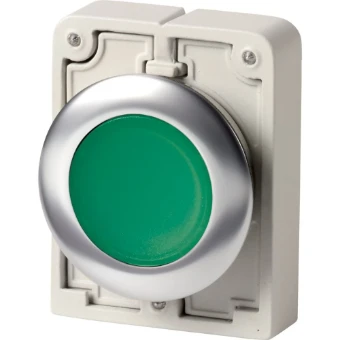

Illuminated pushbutton actuator, RMQ-Titan, flat, maintained, green, b
Illuminated pushbutton actuator, RMQ-Titan, flat, maintained, green, b
Product description
Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: flat, maintained, button plate: green, Button plate blank, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660
Product specifications
Number of command positions
1
Hole diameter
30.5 mm
Degree of protection (IP), front side
IP67
Switching function latching
Yes
With front ring
Yes
Material front ring
Metal
Colour button
Green
Construction type lens
Round
Width opening
0 mm
With protective cover
No
Height opening
0 mm
Type of button
Flat
Labelled
No
Suitable for illumination
Yes
Spring-return
No
Colour front ring
Stainless steel
Degree of protection (NEMA), front side
4X, 13
