Front element for push button Eaton
Add to selection
General information
Ordercode YESSS
6300-3805
Product code
188064
EAN code
04015081857432
Product group
Front element for push button
Brand
Eaton

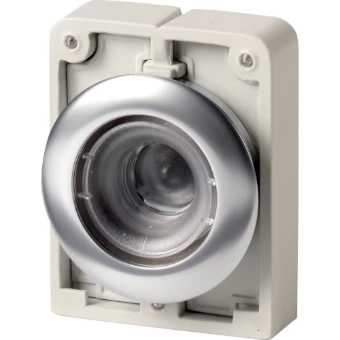

Illuminated pushbutton actuator, RMQ-Titan, flat, momentary, Front rin
Illuminated pushbutton actuator, RMQ-Titan, flat, momentary, Front rin
Product description
Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: flat, momentary, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Standards: IEC/EN 60947, VDE 0660
Product specifications
Number of command positions
1
Hole diameter
30.5 mm
Degree of protection (IP), front side
IP67
Switching function latching
No
With front ring
Yes
Material front ring
Metal
Colour button
Without button plate
Construction type lens
Round
Width opening
0 mm
With protective cover
No
Height opening
0 mm
Type of button
Flat
Labelled
No
Suitable for illumination
Yes
Spring-return
Yes
Colour front ring
Stainless steel
Degree of protection (NEMA), front side
4X, 13
Product information
