Control switch, Joystick Eaton
Add to selection
General information
Ordercode YESSS
5361-0301
Product code
187078
EAN code
04015081821365
Product group
Control switch, Joystick
Brand
Eaton

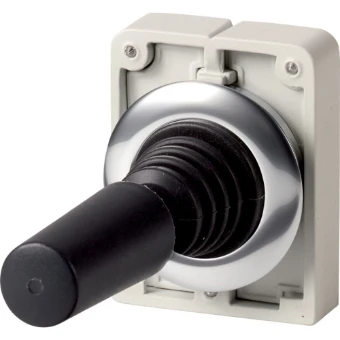

Joystick, RMQ-Titan, horizontally momentary, with metal shaft, 2 posit
Joystick, RMQ-Titan, horizontally momentary, with metal shaft, 2 posit
Product description
Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Function: maintained, Horizontal, Standards: IEC/EN 60947, VDE 0660
Product specifications
Joy stick length
66 mm
With retraction in 0-position
No
Number of actuation directions
2
Number of normally open contacts per actuation direction
0
Degree of protection (IP)
IP66
Number of normally closed contacts per actuation direction
0
Number of make-and-break contacts per direction
0
Locking in 0-position
No
Coder
No
Centre mounting, hole diameter
30 mm
Analogue output signal configurable
No
With front ring
Yes
Material front ring
Metal
Colour front ring
Chrome
Rated operation current Ie at AC-21, 400 V
0 A
Degree of protection (NEMA)
4X, 13
Number of switch positions
1
