Front element for push button Eaton
Add to selection
General information
Ordercode YESSS
5361-0001
Product code
182958
EAN code
04015081778850
Product group
Front element for push button
Brand
Eaton

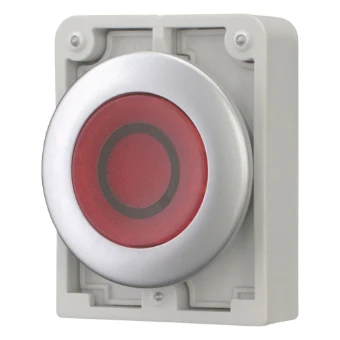

Illuminated pushbutton actuator, RMQ-Titan, Flat, momentary, red, insc
Illuminated pushbutton actuator, RMQ-Titan, Flat, momentary, red, insc
Product description
Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flat, momentary, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Standards: IEC/EN 60947, VDE 0660
Product specifications
Number of command positions
1
Hole diameter
30.5 mm
Degree of protection (IP), front side
IP67/IP69K
Switching function latching
No
With front ring
Yes
Material front ring
Metal
Colour button
Red
Construction type lens
Round
Width opening
0 mm
With protective cover
No
Height opening
0 mm
Type of button
Flat
Labelled
Yes
Suitable for illumination
Yes
Spring-return
Yes
Colour front ring
Titanium
Degree of protection (NEMA), front side
4X, 13
