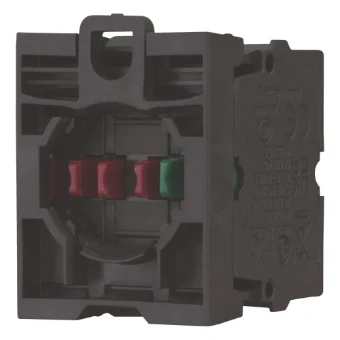

Auxiliary contact block Eaton
Add to selection
General information
Ordercode YESSS
3910-6567
Product code
173027
EAN code
04015081696185
Product group
Auxiliary contact block
Brand
Eaton
Combination of contact element and self-monitoring contact element M22
Combination of contact element and self-monitoring contact element M22
Product description
Contact element, Connection technique: Screw terminals, Fixing: Front fixing, Description: Combination of contact element and self-monitoring contact element M22-K01SMC10 with screw terminals, M22-A mounting adapter, and M22-XSMC signaling contact actuator., The N/O in the self-monitoring contact element is actuated when mounted with M22-XSMC., Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Product specifications
Mounting method
Front fastening
Number of contacts as change-over contact
0
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
2
Number of fault-signal switches
0
Type of electric connection
Screw connection
Model
Top mounting
Lamp holder
None
Rated operation current Ie at AC-15, 230 V
6 A
