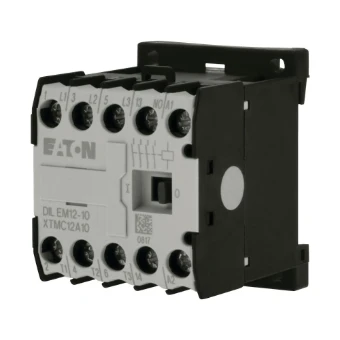

Power contactor, AC switching Eaton
Add to selection
General information
Ordercode YESSS
2199-5185
Product code
151669
EAN code
4015081484577
Product group
Power contactor, AC switching
Brand
Eaton
Product specifications
Rated operation power at AC-3, 400 V
5.5 kW
Voltage type for actuating
DC
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Screw connection
Modular version
No
Rated control supply voltage at AC 50 Hz
0 - 0 V
Rated control supply voltage at AC 60 Hz
0 - 0 V
Rated operation power NEMA
3.7 kW
Rated control supply voltage at DC
24 - 24 V
Rated operation current Ie at AC-1, 400 V
22 A
Rated operation current Ie at AC-3, 400 V
12 A
Rated operation current Ie at AC-4, 400 V
6.6 A
Rated operation power at AC-4, 400 V
3 kW
Operating voltage at AC 50 Hz
24 - 690 V
Operating voltage at AC 60 Hz
24 - 690 V
Width
45 mm
Height
58 mm
Depth
54 mm
Product information
