General information
Ordercode YESSS
0462-0661
Product code
237892
EAN code
04015082378929
Product group
Switch disconnector
Brand
Eaton
Main switch, P3, 30 A, flush mounting, 3 pole, With

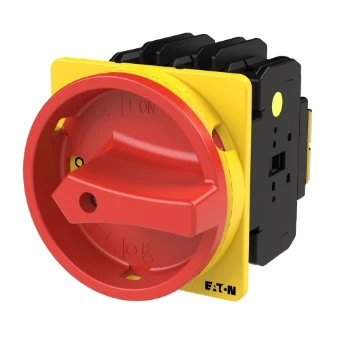

Main switch, P3, 30 A, flush mounting, 3 pole, With red rotary handle
Product description
Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, With red rotary handle and yellow locking ring, 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Rated uninterrupted current: Iu = 30 A, Standards: UL489
Product specifications
Rated permanent current Iu
30 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
0 kW
Number of switches
1
Number of poles
3
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
0 A
Version as emergency stop installation
Yes
Rated operation power at AC-3, 400 V
0 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
0 kA
Switching power at 400 V
0 kW
Conditioned rated short-circuit current Iq
100 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Red
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
90 mm
Height
114 mm
Depth
150 mm
