Switch disconnector Eaton
Add to selection
General information
Ordercode YESSS
0462-0658
Product code
014339
EAN code
04015080143390
Product group
Switch disconnector
Brand
Eaton

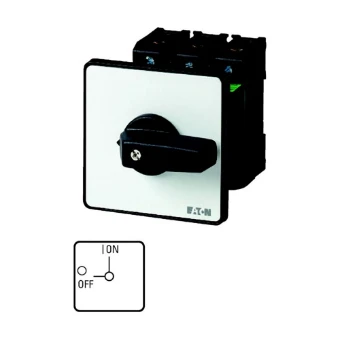

On-Off switch, P3, 100 A, rear mounting, 3 pole, 2
On-Off switch, P3, 100 A, rear mounting, 3 pole, 2 N/O, 2 N/C, with bl
Product description
On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, 3 pole, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Product specifications
Rated permanent current Iu
100 A
Number of auxiliary contacts as normally closed contact
2
Number of auxiliary contacts as normally open contact
2
Version as reversing switch
No
Rated operation power at AC-23, 400 V
55 kW
Number of switches
1
Number of poles
3
Version as main switch
No
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
No
Version as safety switch
No
Rated permanent current at AC-21, 400 V
100 A
Version as emergency stop installation
No
Rated permanent current at AC-23, 400 V
100 A
Rated operation power at AC-3, 400 V
37 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
2 kA
Switching power at 400 V
55 kW
Conditioned rated short-circuit current Iq
80 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Type of control element
Door coupling rotary drive
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Black
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
90 mm
Height
114 mm
Depth
150 mm
