Front element for mushroom push-button Eaton
Add to selection
General information
Ordercode YESSS
0307-3915
Product code
271540
EAN code
04015082715403
Product group
Front element for mushroom push-button
Brand
Eaton

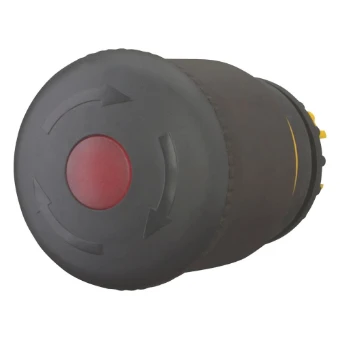

HALT/STOP-Button, RMQ-Titan, Mushroom-shaped, 38 mm, Illuminated with
HALT/STOP-Button, RMQ-Titan, Mushroom-shaped, 38 mm, Illuminated with
Product description
HALT/STOP-Button, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Illuminated with LED element, Turn-to-release function, Color Mushroom head: Black, Color Base: yellow, Color RAL Value: RAL 9005, RAL 9005, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 35, Standards: IEC/EN 60947, VDE 0660
Product specifications
Colour button
Black
Degree of protection (IP)
IP67/IP69K
Switching function latching
Yes
Spring-return
No
Suitable for emergency stop
No
Construction type lens
Round
Diameter cap
38 mm
Hole diameter
22.5 mm
Degree of protection (NEMA)
4X, 13
Width opening
0 mm
Height opening
0 mm
Type of button
High
Suitable for illumination
Yes
With front ring
No
Material front ring
Other
Colour front ring
Other
Unlocking method
Turn-release
With lighting
No
Supply voltage lamp
0 V
