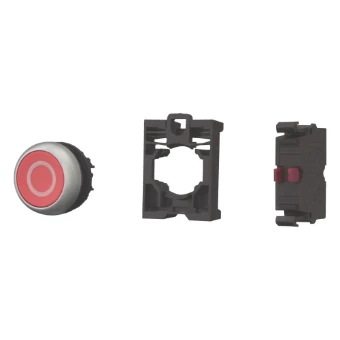

Push button, complete Eaton
Add to selection
General information
Ordercode YESSS
0307-1452
Product code
216510
EAN code
04015082165109
Product group
Push button, complete
Brand
Eaton
Pushbutton, RMQ-Titan, Flat, momentary, 1 NC, red, inscribed, Bezel: t
Pushbutton, RMQ-Titan, Flat, momentary, 1 NC, red, inscribed, Bezel: t
Product description
Pushbutton, RMQ-Titan, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660
Product specifications
Number of command positions
1
Spring-return
Yes
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
1
Degree of protection (IP)
IP67/IP69K
Colour button
Red
Construction type lens
Round
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Type of button
Flat
Suitable for illumination
No
Switching function latching
No
Supply voltage lamp
0 V
Number of contacts as change-over contact
0
Type of electric connection
Screw connection
With front ring
Yes
Material front ring
Plastic
Colour front ring
Chrome
Degree of protection (NEMA)
4X, 13
Transparent
No
