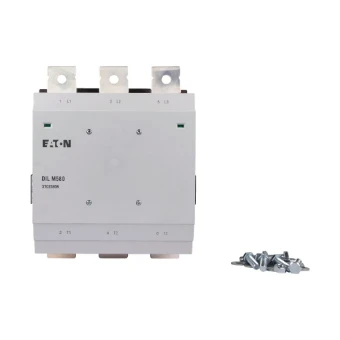

Power contactor, AC switching Eaton

Add to selection

General information

Ordercode YESSS

0306-0220

Product code

208217

EAN code

04015082082178

Product group

Power contactor, AC switching

Brand

Eaton

Contactor, 380 V 400 V 315 kW, 2 N/O, 2 Contactor, 380 V 400 V 315 kW, 2 N/O, 2 NC, RAC 500: 250 - 500 V 40 -

Product description

Contactor, Application: Contactors for Motors, Comfort devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw connection, Rated operational current AC-3 380 V 400 V: Ie= 580 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 980 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 2000 A , Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 185 kW, 380 V 400 V: P= 315 kW, 660 V 690 V: P= 560 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 143 kW, 380 V 400 V: P= 250 kW, 660 V 690 V: P= 440 kW, Can be combined with auxiliary contact: DILM820-XHI…, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC and DC operation

Product specifications

Rated operation power at AC-3, 400 V

315 kW

Voltage type for actuating

AC/DC

Number of normally open contacts as main contact

Number of normally closed contacts as main contact

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Type of electrical connection of main circuit

Rail connection

Modular version

Rated control supply voltage at AC 50 Hz

480 - 500 V

Rated control supply voltage at AC 60 Hz

480 - 500 V

Rated operation power NEMA

298 kW

Rated control supply voltage at DC

250 - 700 V

Rated operation current Ie at AC-1, 400 V

980 A

Rated operation current Ie at AC-3, 400 V

580 A

Rated operation current Ie at AC-4, 400 V

456 A

Rated operation power at AC-4, 400 V

250 kW

Operating voltage at AC 50 Hz

250 - 500 V

Operating voltage at AC 60 Hz

250 - 500 V

Width

250 mm

Height

296 mm

Depth

232 mm
