Capacitor contactor Eaton
Add to selection
General information
Ordercode YESSS
0305-7310
Product code
293968
EAN code
04015082939687
Product group
Capacitor contactor
Brand
Eaton

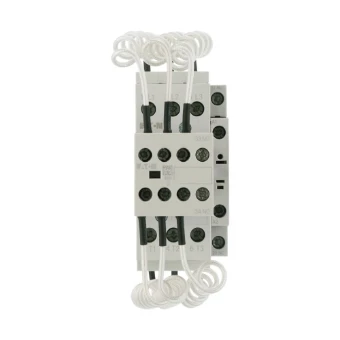

Contactor for capacitors, with series resistors, 12.5 kVAr, 48 V
Contactor for capacitors, with series resistors, 12.5 kVAr, 48 V 50 Hz
Product description
For switching in central compensation systems with 180-fold transient peaks. The capacitors are pre-charged via the early-make auxiliary contacts and the fitted wire resistors, thus reducing the inrush current.
Product specifications
Rated control supply voltage at AC 50 Hz
48 - 48 V
Voltage type for actuating
AC
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated blind power at 400 V, 50 Hz
12.5 kvar
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Rated control supply voltage at AC 60 Hz
0 - 0 V
Rated control supply voltage at DC
0 - 0 V
Operating voltage at AC 50 Hz
230 - 690 V
Operating voltage at AC 60 Hz
230 - 690 V
Rated switch current
18 A
Bemessungsblindleistung bei 400 V, 60 Hz
12.5 kvar
Number of auxiliary contacts as change-over contact
0
Width
45 mm
Height
135 mm
Depth
138 mm
