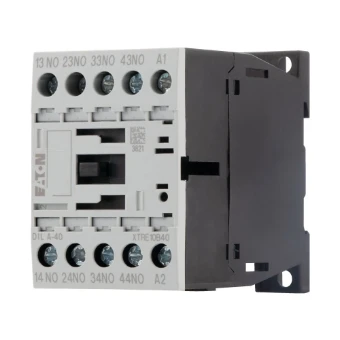

Contactor relay Eaton
Add to selection
General information
Ordercode YESSS
0305-6062
Product code
276346
EAN code
4015082763466
Product group
Contactor relay
Brand
Eaton
Product specifications
Voltage type for actuating
DC
Rated control supply voltage at AC 50 Hz
0 - 0 V
Rated control supply voltage at DC
60 - 60 V
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
4
Number of auxiliary contacts as change-over contact
0
Mounting method
DIN-rail/screw
Number of auxiliary contacts as normally closed contact, delayed switching
0
Interface
No
Number of auxiliary contacts as normally open contact, leading
0
Connection type auxiliary circuit
Screw connection
Rated operation current Ie, 400 V
4 A
Rated control supply voltage at AC 60 Hz
0 - 0 V
With LED indication
No
Suitable for manual operation
No
Rated operation current
16 A
Operating voltage at AC 50 Hz
17 - 500 V
Operating voltage at AC 60 Hz
17 - 500 V
Operating voltage at DC
24 - 220 V
Voltage type (operating voltage)
AC/DC
Rated switch current
16 A
Width
45 mm
Height
68 mm
Depth
75 mm
