General information

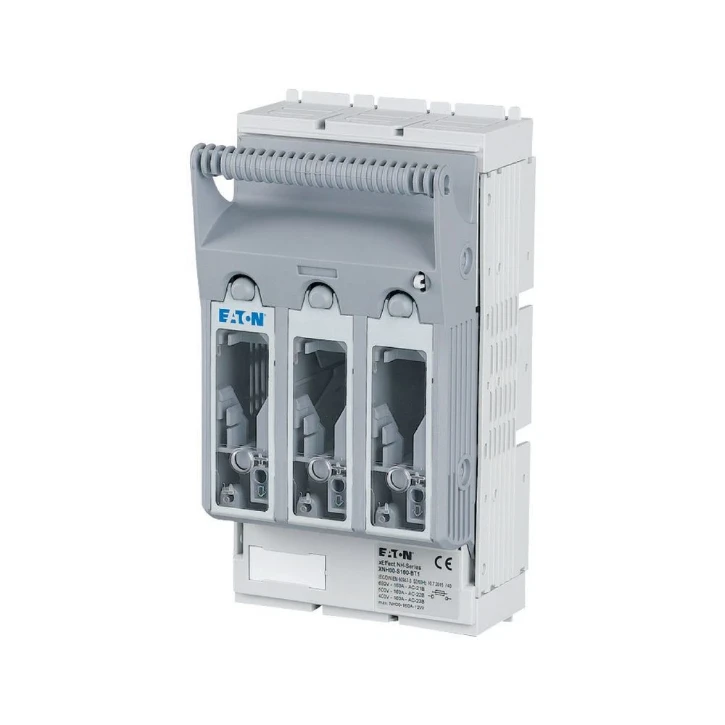

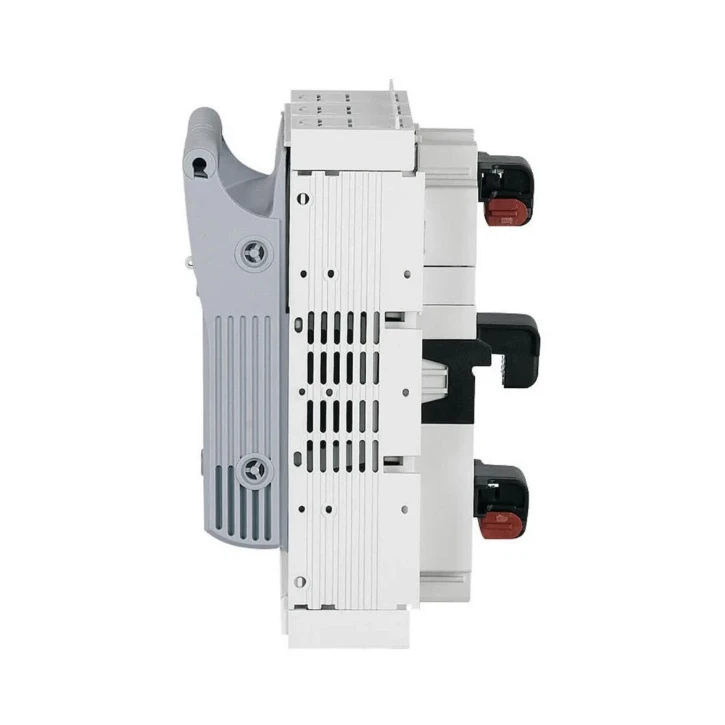

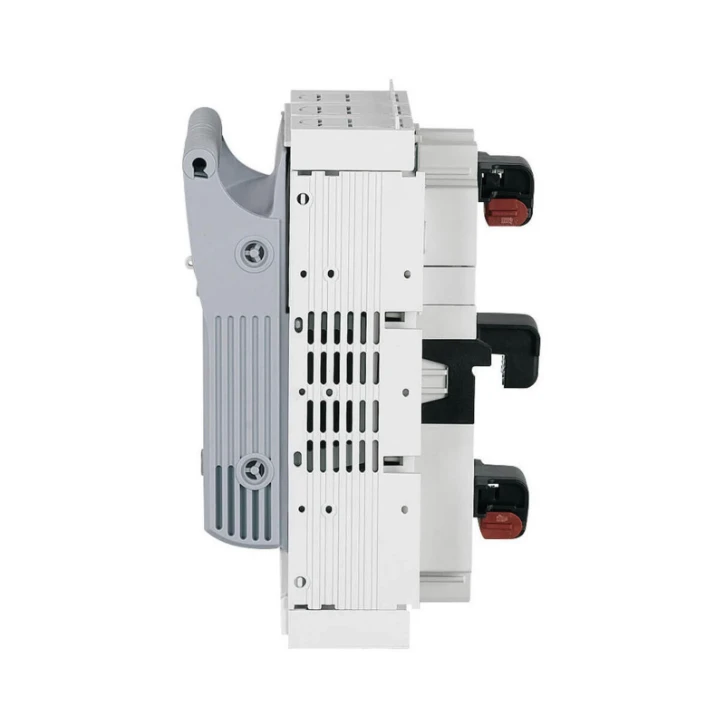

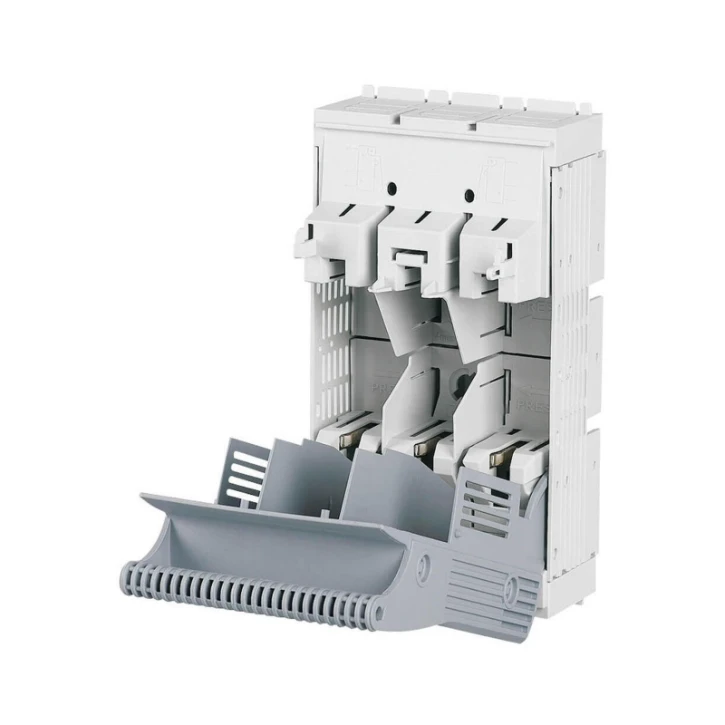

NH fuse-switch 3p box terminal 1,5 - 95 mm², busbar
NH fuse-switch 3p box terminal 1,5 - 95 mm², busbar 60 mm, NH000 & NH0
Ordercode YESSS
4975-0474
Product code
183034
EAN code
4015081779611
Product group
Fuse switch disconnector
Brand
Eaton
Serie
None
Type
XNH00-S160-BT1
Product description
NH fuse switch-disconnector 3 pole with box terminal 1,5 - 95 mm²; busbar 60 mm; for NH000 & NH00 fuse-links; optionally lockable with XNH-XLOCK and padlock; upper/lower cable connection can be changed in seconds.
Product specifications
Number of poles
3
Rated permanent current Iu
160 A
Suitable for fuses
NH00
Rated operation power at AC-23, 400 V
0 kW
Version as main switch
No
Version as safety switch
No
Rated short-time withstand current lcw
7 kA
Suitable for busbar mounting
Yes
Degree of protection (IP), front side
Other
Max. rated operation voltage Ue AC
690 V
Conditioned rated short-circuit current Iq
120 kA
Cable entry
Other
With error protection
No
Equipped with connectors
No
Type of electrical connection of main circuit
Frame clamp
Type of control element
Cover grip
Position control element
Front side
Version as emergency stop installation
No
Motor drive optional
No
Motor drive integrated
No
Suitable for floor mounting
No
Suitable for front mounting
Yes
